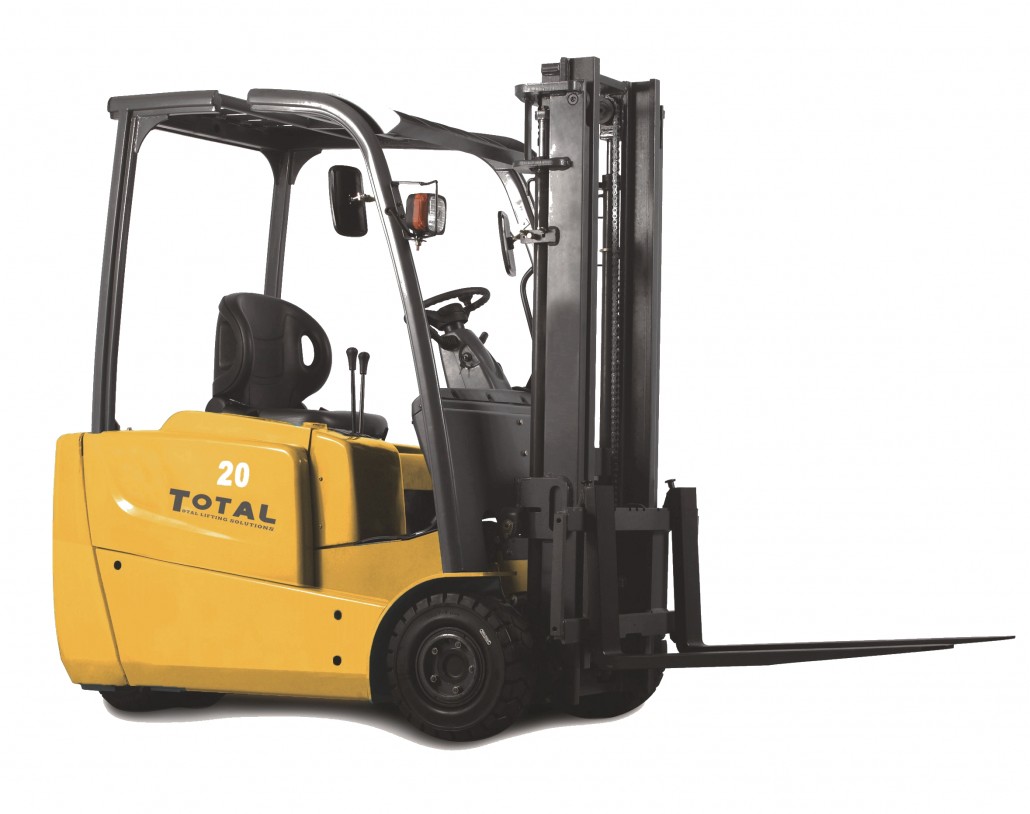

Total Forklift 3-Wheel Electric Forklift
Total Forklift: FBT16/FBT18/FBT20
Overview
Total Forklift 3-wheel electric forklift is available for both 100% AC technology and Semi-AC technology as options to meet different customer’s need.Built with dual front driving motors and compact design provide the truck with better maneuverability.The optional side-way battery change system make it possible to change the battery within one minute.With the help of the world famous CURTIS controller and high-performance motors,the whole forklift is working under a perfect condition with lower energy consumption and better productivity.
BASIC CHARATERISTICS:
| Model: | Rated Capacity: | Load Center: | Standard Mast Lifting Height: |
|---|---|---|---|
| FBT16 | 1600 KGS | 500 mm | 3000 mm |
| FBT18 | 1800 KGS | 500 mm | 3000 mm |
| FBT20 | 2000 KGS | 500 mm | 3000 mm |
DIMENSIONS:
| FBT16: | FBT18: | FBT20: | |
|---|---|---|---|
| LENGTH TO FORK FACE: | 2090 mm | 2090 mm | 2090 mm |
| OVERALL WIDTH: | 1100 mm | 1100 mm | 1100 mm |
| MAST LOWERED HEIGHT: | 2030 mm | 2030 mm | 2030 mm |
| MAST EXTENDED HEIGHT: | 4010 mm | 4010 mm | 4010 mm |
| OVERHEAD GUARD HEIGHT: | 2055 mm | 2055 mm | 2055 mm |
| TURNING RADIUS (outside): | 1690 mm | 1690 mm | 1690 mm |
| AISLE WIDTH: (For pallets 1000×1200 crossways): | 3300 mm | 3300 mm | 3300 mm |
| AISLE WIDTH: (For pallets 800×1200 crossways): | 3500 mm | 3500 mm | 3500 mm |
| FORK SIZE, (L×W×T): 920×120×35 mm | 920×120×35mm | 920×120×35 mm | 920×120×35 mm |
WEIGHT:
| FBT16: | FBT18: | FBT20: | |
|---|---|---|---|
| SERVICE WEIGHT: | 3000 KGS | 3200 KGS | 3400 KGS |
BRAKE:
| SERVICE BRAKE: | HYDRAULIC |
| PARKING BRAKE: | MECHANICAL |
POWER TYPE: ELECTRIC CONTROLLER:
| MANUFACTURER: | USA Brand – CURTIS |
| TYPE OF DRIVE CONTROL: | MOSFET/AC |
BATTERY:
| VOLTAGE/CAPACITY: | 48V/490Ah (FBT16&FBT18) |
| VOLTAGE/CAPACITY: | 48V/560Ah (FBT20) |
MOTORS:
| DRIVING MOTOR rating S2 60 min (kw): | 4.5×2 AC,(Dual Driving Motors) |
| LIFTING MOTOR rating S3 15% (kw): | 8.6 DC (semi-AC type) |
| LIFTING MOTOR rating S3 15% (kw | 8.6 AC (Full-AC type) |
SAFETY
Robust overhead safe-guard construct a safe and comfortable operation space for the operator.
With the help of the functional warning lights,buzzers,the truck is keeping alarming when it’s steering or reversing.
High frequency MOSFET controller provides accurate control of traveling,lifting and better adjustable performance and better match with the motor.
Secure stopping on ramp function is also provided thanks to MOSFET controller.
Motor brake is for regenerative braking during deceleration,direction changing and downward slope.The regenerative braking is more energy saving and effectively.
Emergency switch is standard specification which meets the Euro safety regulation.
There’s overloading protection for electronics and hydraulic system.
COMFORT
High efficiency and productivity are only possible when the truck can bring a comfortable operation conditions.The reasonable layout of control system based on the ergonomics,adjustable seats with safe belts,adjustable steering column and clear dash board layout offer a excellent operating experience.
Sinking type designed battery layout provides batter stability especially during turning.
New designed broad view mast provides better visibility.
Clear dashboard is easy to see and provides friendly human-computer interaction and with running hours,self diagnosis function and battery power status.
Quiet,energy saving and no exhaust emission,all meet friendly requirement.
PERFORMANCE
World famous electric controller CURTIS together with high-reliability motors and big capacity battery form a impressive power package,high quality specially designed hydraulic system and mast deliver excellent efficiency and performance.
MAINTENANCE AND SERVICING
Full opened battery cover is easy for battery service
The controller is enclosed to avoid dust and water,and the cover is easy opened.The applied world famous controllers,connectors,battery plug,emergency switch and dashboard guarantee the reliability of the performance and provide easy service.
