Tow Tractor

Overview

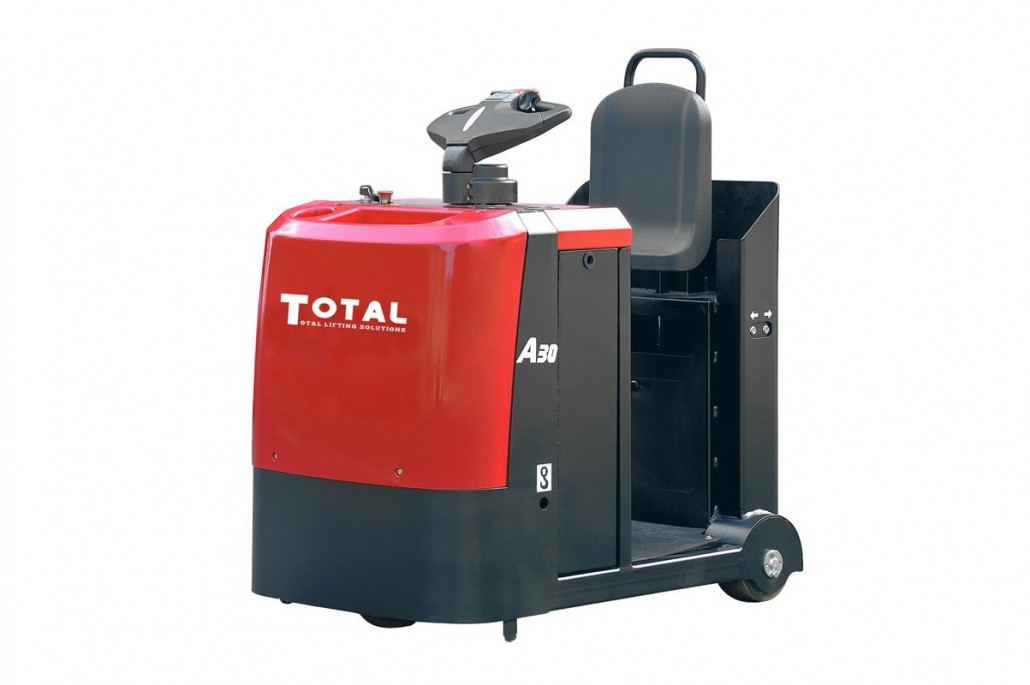

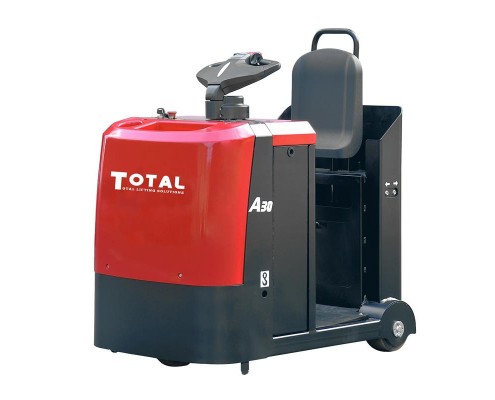

The TOTAL light model electric tow tractor comes with a towing capacity 2-6t.
It is ideal long-travel and multi-shift applications.
It adopts many components that also used in forklift truck,such as the power train and heavy-duty brakes.
It is also provided with three independent braking systems.

The CURTIS programmable AC controller provides regenerative braking,which can reduce brake wear,recharge the battery and virtually eliminate the need for a foot brake.
Our electric tow tractor offers both mental and physical comfort,as well as safety for the driver.The driver’s compartment is spacious and free from obstructions for safe access and comfortable driving.With the stand-on operator position,it is suited for applications requiring frequent step in and step out.
What’s more,the whole tractor incorporates the uncomplicated design and the latest technology,achieving up to 500 hours service intervals and easy maintenance without a laptop.

  • Model
  • TT2-C1:
  • TT2-C1S:
  • TT4-C1:
  • TT4-C1S
  • TT6-C1:
  • TT6-C1S:
  • Operation
  • SEATED
  • SEATED-ON
  • SEATED
  • SEATED-ON
  • SEATED
  • SEATED-ON
  • Towed Load Capacity
  • 2000 kgs
  • 2000 kgs
  • 4000 kgs
  • 4000 kgs
  • 6000 kgs
  • 6000 kgs
  • Turning Radius
  • 1600 mm
  • 1600 mm
  • 1760 mm
  • 1760 mm
  • 1760 mm
  • 1760 mm
  • Overall Length
  • 1690 mm
  • 1690 mm
  • 1845 mm
  • 1845 mm
  • 1845 mm
  • 1845 mm
  • Battery
  • 165 Ah
  • 165 Ah
  • 210 Ah
  • 210 Ah
  • 275 Ah
  • 275 Ah
