Total Forklift 4-Wheel Electric Forklift

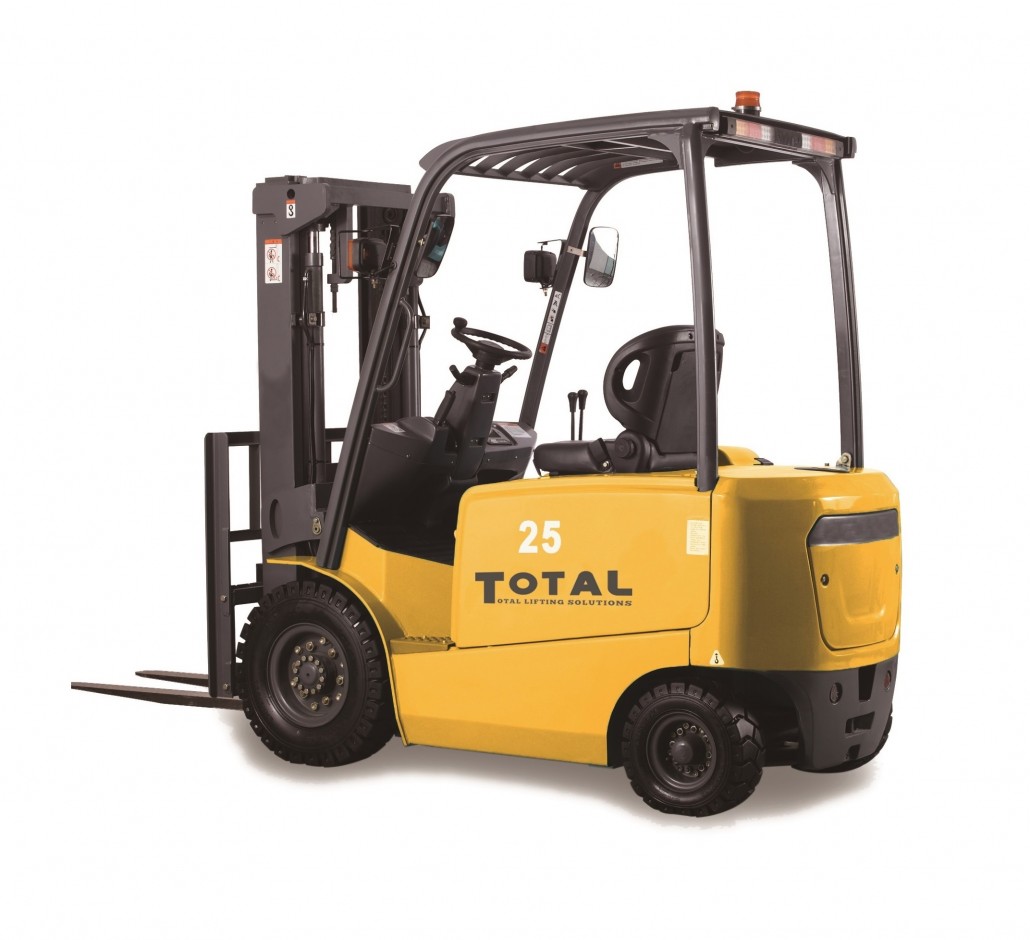

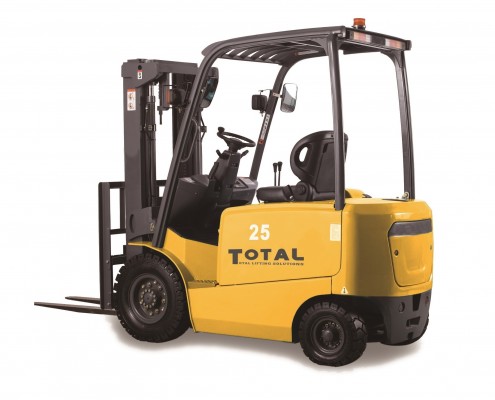

Total Forklift: FB20 / FB25
Overview
The new generation of Total Forklift electric counter balance forklift adopt state-of-the-art technology with streamline outline design,the safety,comfort,reliability are fully improved,and the whole performance of the truck is also increased.
BASIC CHARATERISTICS:
| Model: | Rated Capacity: | Load Center: | Standard Mast Lifting Height: |
|---|---|---|---|
| FB20 | 2000 KGS | 500 mm | 3000 mm |
| FB25 | 2500 KGS | 500 mm | 3000 mm |
DIMENSIONS:
| FB20: | FB25: | |
|---|---|---|
| LENGTH TO FORK FACE: | 2360 mm | 2360 mm |
| OVERALL WIDTH: | 1160 mm | 1160 mm |
| MAST LOWERED HEIGHT: | 2070 mm | 2070 mm |
| MAST EXTENDED HEIGHT: | 4020 mm | 4020 mm |
| OVERHEAD GUARD HEIGHT: | 2075 mm | 2075 mm |
| TURNING RADIUS (outside): | 2240 mm | 2240 mm |
| AISLE WIDTH: (For pallets 1000×1200 crossways): | 3740 mm | 3745 mm |
| AISLE WIDTH: (For pallets 800×1200 crossways): | 3940 mm | 3945 mm |
| FORK SIZE, (L×W×T): 1070×120×40 mm | 1070×120×40 mm | 1070×120×40 mm |
WEIGHT:
| FB20: | FB25: | |
|---|---|---|
| SERVICE WEIGHT: | 4170 KGS | 4410 KGS |
| WEIGHT DISTRIBUTION: | ||
| Full Load : Front / Rear | 5356 / 814 KGS | 6070 / 840 KGS |
| No Load : Front / Rear | 1828 / 2342 KGS | 1880 / 2530 KGS |
BRAKE:
| SERVICE BRAKE: | HYDRAULIC |
| PARKING BRAKE: | MECHANICAL |
ENERGY CONSUMPTION (acc.to VDI cycle)
| FB20: | FB25: |
| 5.0 kWh /h | 5.8 kWh /h |
POWER TYPE: ELECTRIC CONTROLLER:
| MANUFACTURER: | USA Brand – CURTIS |
| TYPE OF DRIVE CONTROL: | MOSFET/AC |
| MANUFACTURER: | Italian Brand – ZAPI |
| MANUFACTURER: | MOSFET/AC |
BATTERY:
| VOLTAGE/CAPACITY: | 48V/560Ah |
| BATTERY WEIGHT: | 1050 KGS |
| BATTERY DIMENSION: | 1028×570×780 mm |
MOTORS:
| DRIVING MOTOR rating S2 60 min (kw): | 11.0 AC |
| LIFTING MOTOR rating S3 15% (kw): | 8.6 DC (semi-AC type) |
| LIFTING MOTOR rating S3 15% (kw): | 8.6 AC (Full-AC type) |
SAFETY
High frequency MOSFET controller provides accurate control of traveling,lifting and better adjustable performance and better match with the motor.
Secure stopping on ramp function is also provided thanks to MOSFET controller.
Motor brake is for regenerative braking during deceleration,direction changing and downward slope.The regenerative braking is more energy saving and effectively.
OUTLINE
Attractive designed streamlined outline,small dimension and metal material applied for exposed parts,all provides robust construction of TA series.
COMFORT
Thanks to the new designed ergonomically operator’s cab,the operator can work in relax,low fatigue,and even during long shift.
Sinking type designed battery layout provides batter stability especially during turning.
Ergonomically designed small radius steering wheel,adjustable steering column and 150mm adjustable distance seat,all provide better operating comfort.
Soft landing system is applied for TA series.When the forks low to 60-100mm to ground,the soft landing system is auto operated,and to avoid the forks dashing against the ground
New designed broad view mast provides better visibility.
Big LED dashboard is easy to see and provides friendly human-computer interaction and with running hours,self diagnosis function and battery power status.
Quiet,energy saving and no exhaust emission,all meet friendly requirement.
AC TECHNOLOGY
The AC technology offers numerous advantage to TA series trucks.
Maintenance free driving motors is no need to replace the carbon brush,low service cost.
High efficiency AC system is not only with full protection functions but also with the self equipped temperature sensor,speed sensor,which provides better reliability and long working lifetime.
MAINTENANCE AND SERVICING
Full opened battery cover is easy for battery service
The controller is enclosed to avoid dust and water,and the cover is easy opened.The applied world famous controllers,connectors,battery plug,emergency switch and dashboard guarantee the reliability of the performance and provide easy service.
Emergency switch is standard specification which meets the Euro safety regulation.
There’s overloading protection for electronics and hydraulic system.
