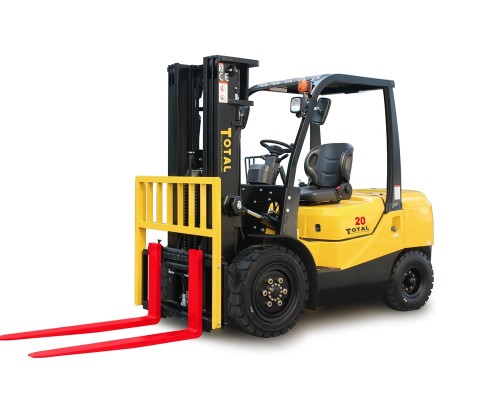

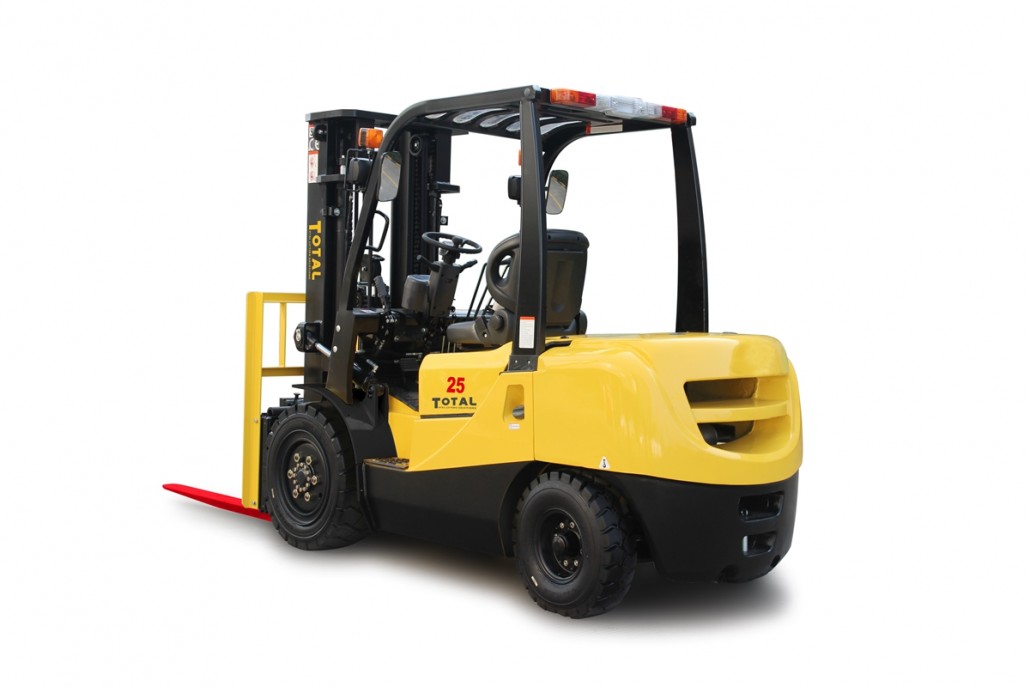

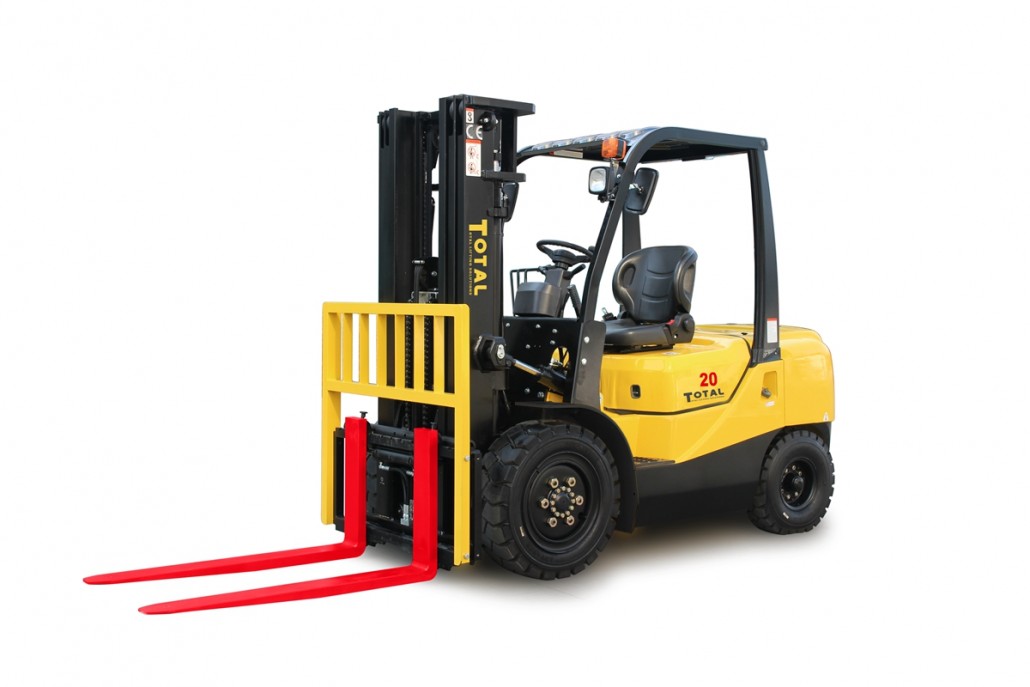

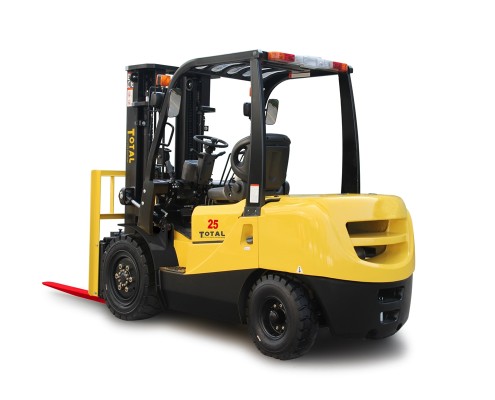

T1 Series Diesel Forklift
Total Forklift: FD20T / FD25T
Overview
Total Forklift T1 series forklift is combined with durability and ergonomics,providing productivity. Equipped with specifically designed forklift engine and transmission,and driving axle, the forklifts are driven by a strong power train with low noise, low vibration, low fuel consumption.
BASIC CHARATERISTICS:
| Model: | Rated Capacity: | Load Center: | Standard Mast Lifting Height: |
|---|---|---|---|
| FD20T | 2000 KGS | 500 mm | 3000 mm |
| FD25T | 2500 KGS | 500 mm | 3000 mm |
DIMENSIONS:
| FD20T: | FD25T: | |
|---|---|---|
| LENGTH TO FORK FACE: | 2600 mm | 2600 mm |
| OVERALL WIDTH: | 1150 mm | 1150 mm |
| MAST LOWERED HEIGHT: | 2055 mm | 2055 mm |
| MAST EXTENDED HEIGHT: | 4050 mm | 4050 mm |
| OVERHEAD GUARD HEIGHT: | 2070 mm | 2070 mm |
| TURNING RADIUS (outside): | 2310 mm | 2310 mm |
| Min. Right Angle Stacking Aisle Width: (Add Load Length and Clearance) | 2380 mm | 2380 mm |
| FORK SIZE, (L×W×T): 920×100×35 mm | 1070×120×40 mm | 1070×120×40 mm |
WEIGHT:
| FD20T: | FD25T: | |
|---|---|---|
| SERVICE WEIGHT: | 3560 KGS | 3700KGS |
POWER TYPE: DIESEL
| ISUZU C240PKJ-30 | |
|---|---|
| Rated Output: | 35.4 kw @ 2500 r.p.m |
| Rated Torque: | 139.0 N.m @ 1800 r.p.m |
| No.of Cylinder: | 4 |
| Bore × Stroke: | 86 ×102 mm |
| Displacement: | 2369 cc |
| Fuel Tank Capacity: | 60 L |
| YANMAR 4TNE92-HRJ | |
| Rated Output: | 32.8 kw @ 2450 r.p.m |
| Rated Torque: | 149.4 N.m @ 1600 r.p.m |
| No.of Cylinder: | 4 |
| Bore × Stroke: | 92 ×100 mm |
| Displacement: | 2659 cc |
| Fuel Tank Capacity: | 60L |
| YANMAR 4TNV94L | |
| Rated Output: | 43 kw @ 2500 r.p.m |
| Rated Torque: | 205 N.m @ 1000 r.p.m |
| No.of Cylinder: | 4 |
| Bore × Stroke: | 94 ×110 mm |
| Displacement: | 3054 cc |
| Fuel Tank Capacity: | 60 L |
| YANMAR 4TNE98-BQFLC | |
| Rated Output: | 44.3 kw @ 2300 r.p.m |
| Rated Torque: | 206 N.m @ 1700 r.p.m |
| 206 N.m @ 1700 r.p.m | 4 |
| Bore × Stroke: | 98 ×110 mm |
| Displacement: | 3319 cc |
| Fuel Tank Capacity: | 60 L |
| XINCHAI C490BPG | |
| Rated Output: | 40.0 kw @ 2650 r.p.m |
| Rated Torque: | 162 N.m @ 1800-2000 r.p.m |
| No.of Cylinder: | 4 |
| Bore × Stroke: | 90 ×105 mm |
| Displacement: | 2670 cc |
| Fuel Tank Capacity: | 60 L |
| Kohler KDI1903TCR ( Emission Standard: Latest EU IV） | |
| Rated Output: | 42.0 kw |
| Rated Torque: | 225.0 N.m |
| No.of Cylinder: | 3 |
| Bore × Stroke: | 88 ×102 mm |
| Displacement: | 1861 cc |
| Fuel Tank Capacity: | 60 L |
TRANSMISSION:
| BRAND: | Chinese Brand – ZHONGNAN. |
|---|---|
| TECHNOLOGY: | TCM Technology |
| TPYE: | Powershift |
| STAGE: | FWD /RVS = 1/1 |
| BRAND: | Japanese Brand – OKAMURA |
| TECHNOLOGY: | FLOATING TYPE |
| TPYE: | Powershift |
| STAGE: | FWD /RVS = 1/1 |
Safety
Overhead Safeguard
Robust Overhead Safeguard and its supporting frame form safe area to avoid the accident and protect the operator.
Throttling Valve
A throttling valve is set in the piping system.The mast won’t result in failing control of mast even some pipe are cracked.
Wide View Mast
The wide view mast design guarantee the operator have good visibility,avoid the accident.
Low Gravity
The low gravity design make the forklift safer when steering.
Seat With Safe Belt
The forklifts are equipped with high quality seat with safe belt,keep the operator on a safe position
OPS System (As Option)
Operator Presence System is available as an option,when the operator leave the seat or don’t sit with a safe position,the forklift cannot move,the mast cannot lower down.
Performance
Specially designed drive train combination guarantee the forklift work with stable power output under low fuel consumption and low emission level,combining the unique control system and reasonable design,it enable the operator to use the forklift easily and maximize productivity.
Comfort
Focusing on the ergonomic design concept,a perfect operating experience is available.
Low entry foot-pedal and an assistance grip on the safe guard,it’s easy for step into the forklift and leave it.The spacious cab,adjustable seat and steering column can meet different operating habit and allow fast and stress-free working.
Maintenance & Servicing
The engine cover have almost 90 degree opening range and one-touch removal of the floorboard leave the technician with an easy access; Clear and reasonable layout in the engine cabin give the technician a clear mind of the whole structure.;No special tool or software to test when problem happen.
