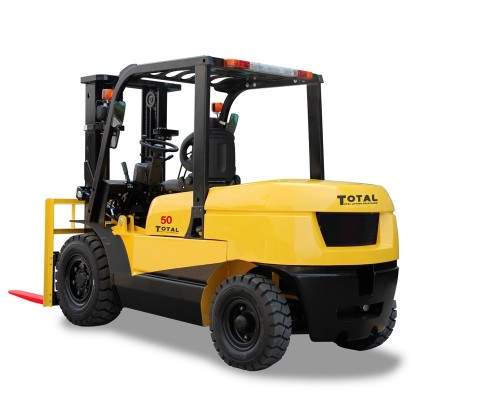

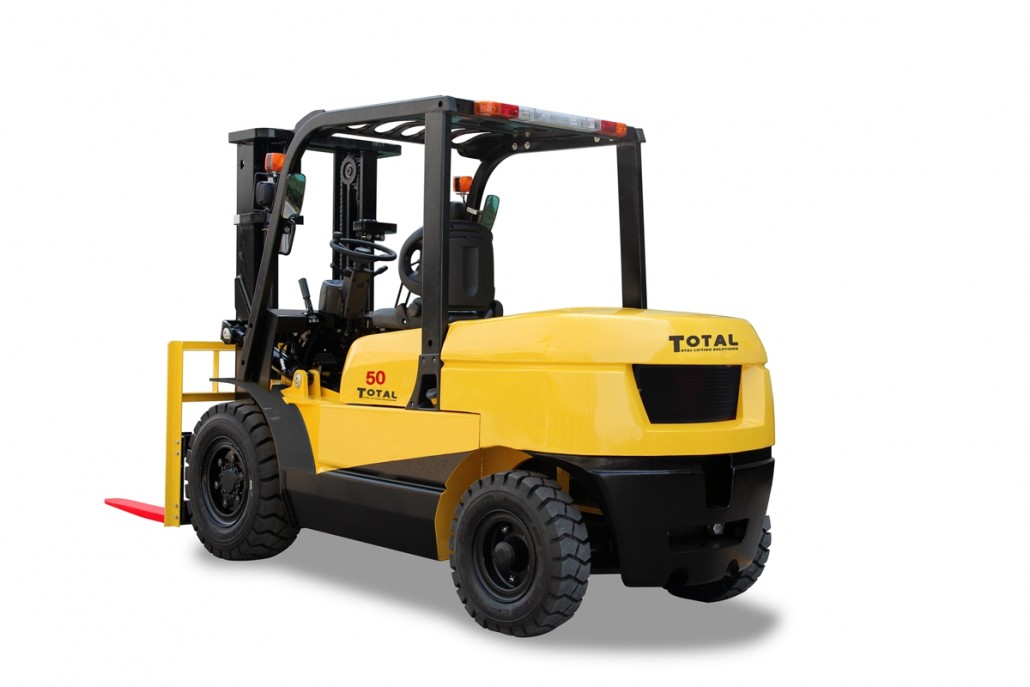

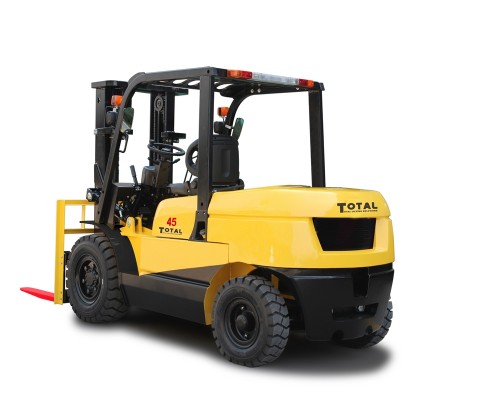

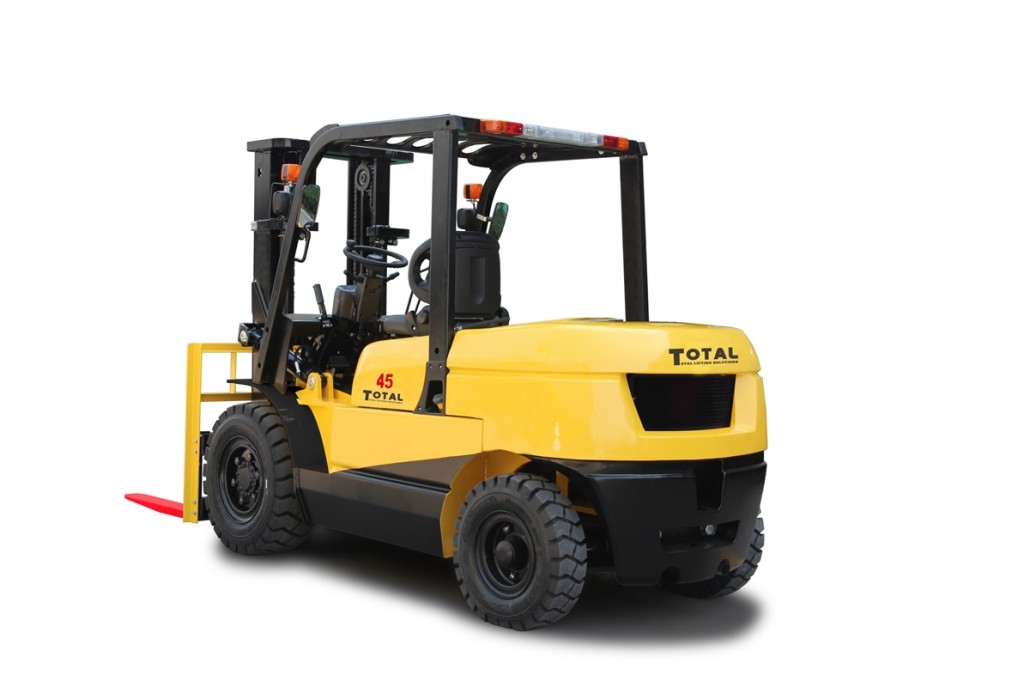

T1 Series Diesel Forklift
Total Forklift: FD40T / FD45T / FDX50T
Overview
Total Forklift T1 series 4.0-mini5.0t range adopt proven and reliable components,with the excellent power-train support,the whole truck become reliable in hardware.Meanwhile,our experienced designer and technical team care about every details,together with the standard and outstanding production process,the high-performance and robust T1 series 4.0-mini5.0 emerged.
The special forklift used engine allow the truck with more power and low energy consumption.
BASIC CHARATERISTICS:
| Model: | Rated Capacity: | Load Center: | Standard Mast Lifting Height: |
|---|---|---|---|
| FD40T | 4000 KGS | 500 mm | 3000 mm |
| FD45T | 4500 KGS | 500 mm | 3000 mm |
| FDX50T | 5000 KGS | 500 mm | 3000 mm |
DIMENSIONS:
| FD40T: | FD45T: | FDX50T: | |
|---|---|---|---|
| LENGTH TO FORK FACE: | 3220 mm | 3220 mm | 3220 mm |
| OVERALL WIDTH: | 1480 mm | 1480 mm | 1480 mm |
| MAST LOWERED HEIGHT: | 2270 mm | 2270 mm | 2270 mm |
| MAST EXTENDED HEIGHT: | 4255 mm | 4255 mm | 4255 mm |
| OVERHEAD GUARD HEIGHT: | 2320 mm | 2320 mm | 2320 mm |
| TURNING RADIUS (outside): | 2900 mm | 2900 mm | 2940 mm |
| Min. Right Angle Stacking Aisle Width: (Add Load Length and Clearance) | 2920 mm | 2920 mm | 2960 mm |
| FORK SIZE, (L×W×T): 920×100×35 mm | 1070×150×50 mm | 1070×150×50 mm | 1070×150×50 mm |
WEIGHT:
| FD40T: | FD45T: | FDX50T: | |
|---|---|---|---|
| SERVICE WEIGHT: | 6450 KGS | 6680 KGS | 6900 KGS |
POWER TYPE: DIESEL
| CUMMINS QSF2.8 (EU IV & EPA Tier 4) | |
|---|---|
| Rated Output: | 55.0 kw @ 2500 r.p.m |
| Rated Torque: | 300.0 N.m @ 1600 r.p.m |
| No.of Cylinder: | 4 |
| Bore × Stroke: | 94 ×100 mm |
| Displacement: | 2800 cc |
| Fuel Tank Capacity: | 80 L |
| PERKINS 1104 | |
| Rated Output: | 56.0 kw @ 2200 r.p.m |
| Rated Torque: | 265.0 N.m @ 1700 r.p.m |
| No.of Cylinder: | 4 |
| Bore × Stroke: | 105 ×127 mm |
| Displacement: | 4410 cc |
| Fuel Tank Capacity: | 80 L |
TRANSMISSION:
| BRAND: | Chinese Brand – ZHONGNAN. |
|---|---|
| TECHNOLOGY: | TCM Technology |
| TPYE: | Powershift |
| STAGE: | FWD /RVS = 1/1 |
Safety
Overhead Safeguard
Robust Overhead Safeguard and its supporting frame form safe area to avoid the accident and protect the operator.
Throttling Valve
A throttling valve is set in the piping system.The mast won’t result in failing control of mast even some pipe are cracked.
Wide View Mast
The wide view mast design guarantee the operator have good visibility,avoid the accident.
Low Gravity
The low gravity design make the forklift safer when steering.
Seat With Safe Belt
The forklifts are equipped with high quality seat with safe belt,keep the operator on a safe position
OPS System (As Option)
Operator Presence System is available as an option,when the operator leave the seat or don’t sit with a safe position,the forklift cannot move,the mast cannot lower down.
Performance
Specially designed drive train combination guarantee the forklift work with stable power output under low fuel consumption and low emission level,combining the unique control system and reasonable design,it enable the operator to use the forklift easily and maximize productivity.
Comfort
Focusing on the ergonomic design concept,a perfect operating experience is available.
Low entry foot-pedal and an assistance grip on the safe guard,it’s easy for step into the forklift and leave it.The spacious cab,adjustable seat and steering column can meet different operating habit and allow fast and stress-free working.
Maintenance & Servicing
The engine cover have almost 90 degree opening range and one-touch removal of the floorboard leave the technician with an easy access; Clear and reasonable layout in the engine cabin give the technician a clear mind of the whole structure.;No special tool or software to test when problem happen.
