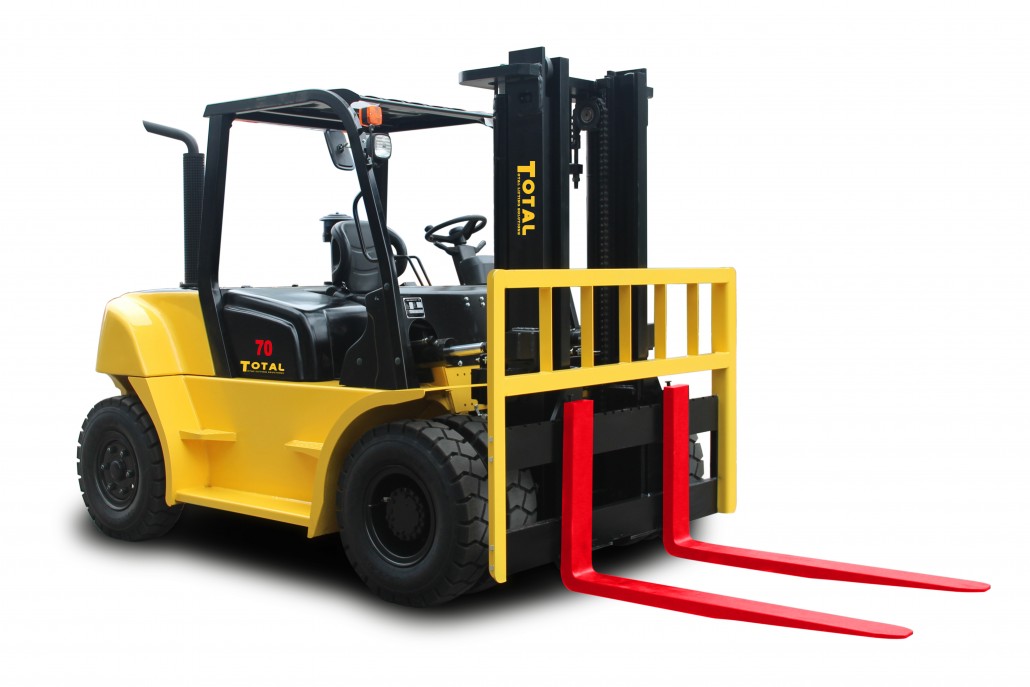

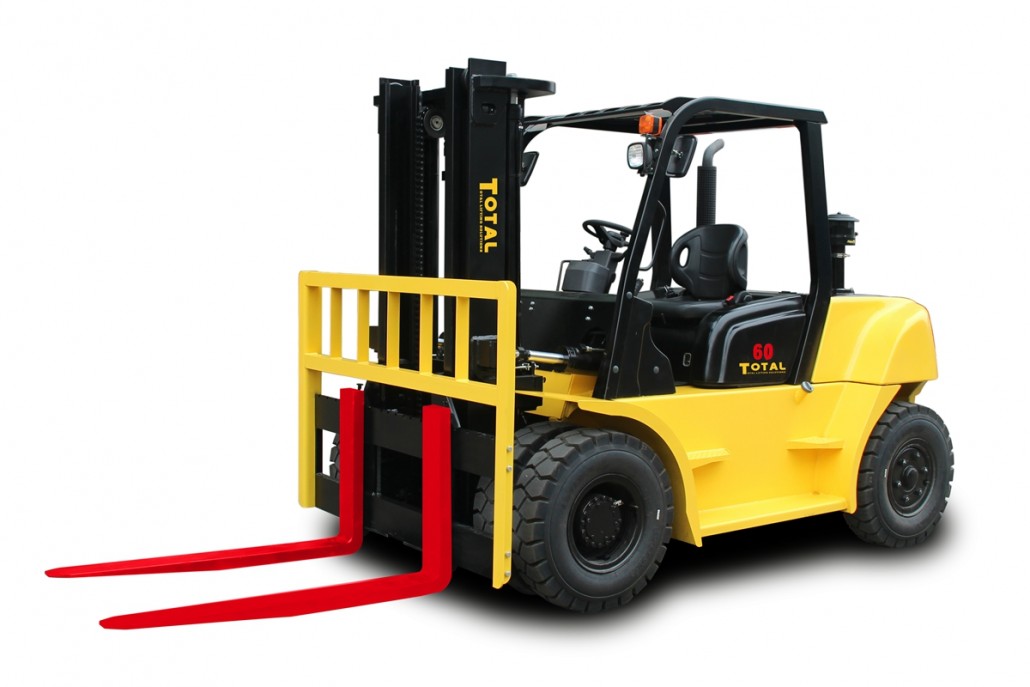

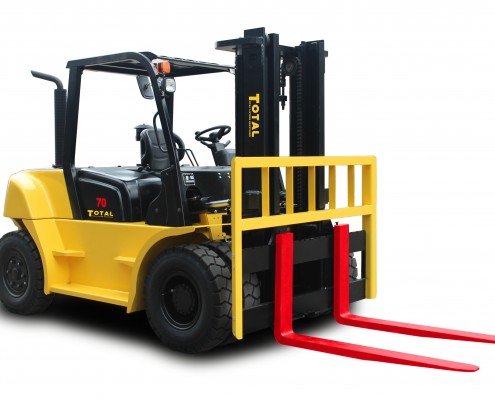

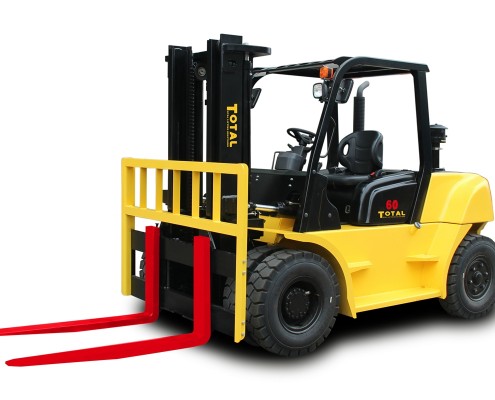

T1 Series Diesel Forklift
Total Forklift: FD50T / FD60T / FD70T
Overview
Total Forklift T1 series 5.0-7.0t diesel forklift are combined with durability and ergonomics,providing productivity.Equipped with specifically designed forklift engine and transmission,and driving axle,the forklifts are driven by a strong power train with low noise,low vibration,low fuel consumption.
Unique HPSS (Hydraulic Power Steering System) works to help reduce steering effort and reduce fatigue over long time operation.Completely hydraulic in design with no mechanical linkages,the smooth operation of this system help to eliminate kickback and oversteer characteristics.
Optional 2-stage stator torque converter helps to improve all-round work efficiency by providing smoother,fatigue-free operation
BASIC CHARATERISTICS:
| Model: | Rated Capacity: | Load Center: | Standard Mast Lifting Height: |
|---|---|---|---|
| FD50T | 5000 KGS | 600 mm | 3000 mm |
| FD60T | 6000 KGS | 600 mm | 3000 mm |
| FD70T | 7000 KGS | 600 mm | 3000 mm |
DIMENSIONS:
| FD50T: | FD60T: | FD70T: | |
|---|---|---|---|
| LENGTH TO FORK FACE: | 3450 mm | 3450 mm | 3560 mm |
| OVERALL WIDTH: | 2010 mm | 2010 mm | 2010 mm |
| MAST LOWERED HEIGHT: | 2500 mm | 2500 mm | 2500 mm |
| MAST EXTENDED HEIGHT: | 4415 mm | 4415 mm | 4415 mm |
| OVERHEAD GUARD HEIGHT: | 2470 mm | 2470 mm | 2470 mm |
| TURNING RADIUS (outside): | 3250 mm | 3250 mm | 3350 mm |
| Min. Right Angle Stacking Aisle Width: (Add Load Length and Clearance) | 2960 mm | 2960 mm | 3040 mm |
| FORK SIZE, (L×W×T): 920×100×35 mm | 1220×150×60 mm | 1220×150×60 mm | 1220×150×70 mm |
WEIGHT:
| FD50T: | FD60T: | FD70T: | |
|---|---|---|---|
| SERVICE WEIGHT: | 8150 KGS | 8750 KGS | 9750 KGS |
POWER TYPE: DIESEL
| ISUZU 6BG1QP | |
|---|---|
| Rated Output: | 82.3 kw @ 2000 r.p.m |
| Rated Torque: | 416.0 N.m @ 1400-1600 r.p.m |
| No.of Cylinder: | 6 |
| Bore × Stroke: | 105 ×125 mm |
| Displacement: | 6494 cc |
| Fuel Tank Capacity: | 140 L |
| CUMMINS QSB4.5-C110 | |
| Rated Output: | 82.0 kw @ 2200 r.p.m |
| Rated Torque: | 488.0 N.m @ 1500 r.p.m |
| No.of Cylinder: | 4 |
| Bore × Stroke: | 107 ×124 mm |
| Displacement: | 4460 cc |
| Fuel Tank Capacity: | 140 L |
| CHAOCHAI 6102 | |
| Rated Output: | 81.0 kw @ 2500 r.p.m |
| Rated Torque: | 353.0 N.m @ 1700 r.p.m |
| No.of Cylinder: | 6 |
| Bore × Stroke: | 102 ×118 mm |
| Displacement: | 5785 cc |
| Fuel Tank Capacity: | 140 L |
TRANSMISSION:
| BRAND: | Chinese Brand – ZHONGNAN. |
|---|---|
| TECHNOLOGY: | TCM Technology |
| TPYE: | Powershift |
| STAGE: | FWD /RVS = 2/2 |
| BRAND: | Japanese Brand – OKAMURA |
| TECHNOLOGY: | 2-Stage Stator Torque Converter |
| TPYE: | Powershift |
| STAGE: | FWD /RVS = 1/1 |
Safety
Overhead Safeguard
Robust Overhead Safeguard and its supporting frame form safe area to avoid the accident and protect the operator.
Throttling Valve
A throttling valve is set in the piping system.The mast won’t result in failing control of mast even some pipe are cracked.
Wide View Mast
The wide view mast design guarantee the operator have good visibility,avoid the accident.
Low Gravity
The low gravity design make the forklift safer when steering.
Seat With Safe Belt
The forklifts are equipped with high quality seat with safe belt,keep the operator on a safe position
OPS System (As Option)
Operator Presence System is available as an option,when the operator leave the seat or don’t sit with a safe position,the forklift cannot move,the mast cannot lower down.
Performance
Specially designed drive train combination guarantee the forklift work with stable power output under low fuel consumption and low emission level,combining the unique control system and reasonable design,it enable the operator to use the forklift easily and maximize productivity.
Unique HPSS (Hydraulic Power Steering System) works to help reduce steering effort and reduce fatigue over long time operation.Completely hydraulic in design with no mechanical linkages,the smooth operation of this system help to eliminate kickback and oversteer characteristics.
Optional 2-stage stator torque converter helps to improve all-round work efficiency by providing smoother,fatigue-free operation
Comfort
Focusing on the ergonomic design concept,a perfect operating experience is available.
Two-level wide-open entry foot-pedals make it easy to access to the forklift,with the anti-slip covering mats on the steps,it become safer. The spacious cab,adjustable seat and steering column can meet different operating habit and allow fast and stress-free working.
Maintenance & Servicing
The engine cover have almost 90 degree opening range and one-touch removal of the floorboard leave the technician with an easy access; Clear and reasonable layout in the engine cabin give the technician a clear mind of the whole structure.;No special tool or software to test when problem happen.
