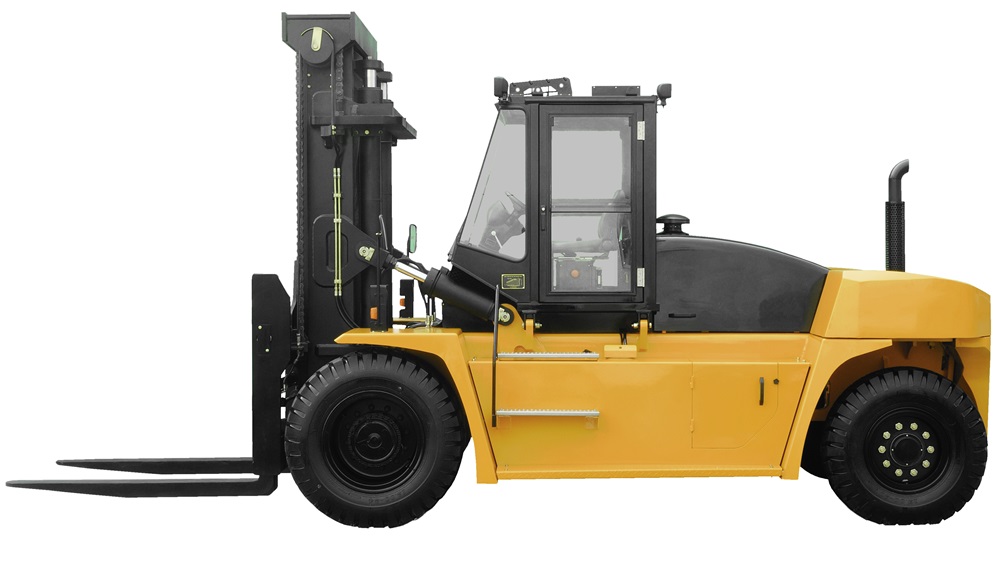

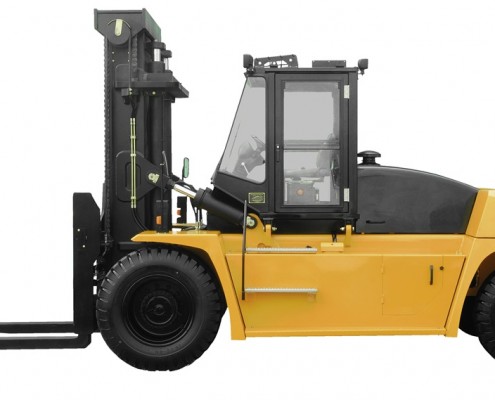

T1 Series Heavy Duty Diesel Forklift
FD120T / FDX140T / FDX160T
Overview
T1 series Heavy Duty Forklift are fitted with the very best power trains.
Engine, gearbox, driving axle – everything has been built and combined into a unit with the highest performance and durability possible. Together with the excellent dynamic stability of the forklift, this provides a driving experience and level of control throughout the work cycle that cannot be compared with any other simple designed trucks.
BASIC CHARATERISTICS:
| Model: | Rated Capacity: | Load Center: | Standard Mast Lifting Height: |
|---|---|---|---|
| FD120T | 12000 KGS | 600 mm | 3000 mm |
| FDX140T | 14000 KGS | 600 mm | 3000 mm |
| FDX160T | 16000 KGS | 600 mm | 3000 mm |
DIMENSIONS:
| FD120T: | FDX140T: | FDX160T: | |
|---|---|---|---|
| LENGTH TO FORK FACE: | 4500 mm | 4710 mm | 4820 mm |
| OVERALL WIDTH: | 2420 mm | 2490 mm | 2490 mm |
| MAST LOWERED HEIGHT: | 3180 mm | 3270 mm | 3290 mm |
| OVERHEAD GUARD HEIGHT: | 2910 mm | 2940 mm | 2960 mm |
| CABIN HEIGHT (Cabin as option): | 3050 mm | 3080 mm | 3100 mm |
| TURNING RADIUS (outside): | 4150 mm | 4350 mm | 4450 mm |
| FORK SIZE, (L×W×T): 920×100×35 mm | 1500×180×90 mm | 1500×200×85 mm | 1500×200×90 mm |
WEIGHT:
| FD120T: | FDX140T: | FDX160T: | |
|---|---|---|---|
| SERVICE WEIGHT: | 15700 KGS | 17600KGS | 19200 KGS |
POWER TYPE: DIESEL ENGINE:
| CUMMINS QSB6.7-160 | |
|---|---|
| Rated Output: | 119.0 kw @ 2300 r.p.m |
| Rated Torque: | 731.0 N.m @ 1500 r.p.m |
| No.of Cylinder: | 6 |
| Bore × Stroke: | 107 ×124 mm |
| Emission Standard: | EU IIIA, EPA Tier 3 |
TRANSMISSION:
| BRAND: | Japanese Brand – OKAMURA. |
|---|---|
| TECHNOLOGY: | Multi-stage Torque Converter |
| Big Converter Ratio | |
| Wide-range of Auto-adjust Speed | |
| STAGE: | FWD /RVS = 2/1 |
Drive Axle
Customized heavy duty car master reducer,wheel end reducer;Open cam brake,air pressure driving brake,spring energy storage parking brake.
Gear Box
Japanese OKAMURA gear box,multi-stage torque converter,big converter ratio,wide range of auto-adjust speed;stable and smooth shift,2-stage forward and 1 stage backward,easy operation and maintenance.
Steering System
Customized-made transverse steering axle with sensorsy item is to make easy steering.
Hydraulic System
Chinese pump valve,multi-hydraulic valve make it easy to operate.Load sensor hydraulic system,double pumps supply dynamic load sensor priority valve,reduce non-working power consumption,reduce hydraulic oil temperature.
Chassis
Combine frame structure with box-shape structure;high intensity,low weight,increase the cooling area of oil tank.
Power System
Turbocharger 6 cylinder engine,high performance,low oil consumption,low speed with high torque,great power reserve.Great capacity cooler,oil and water are together,huge cooling area,abundant cooing capacity.
Lifting assembly
Connect with body pin shaft,wide double mast,increase gantry resistance to torsion,wide view; Standard forks can be adjusted with leading screw by hand.Cylinder adjust is an option.
Overhead guard
Full floating type,connected with 4-point type rubber absorber;Tilt structure is easy to enter and maintain inside,diminutive steering column and steering wheel,wide space for driving legs.Cabin is for an option.
Electrical system
Combined dashboard,well-equipped information display,with alert function.Neutral starting is 0 shift of engine,low brake pressure alert;it will sound alert when low pressure or non-lease parking brake occurred.
Brake System
Adopt auto parts,air pressure power brake,which had the virtues that are not only with little strength but also pollution which oil leakage causes.
