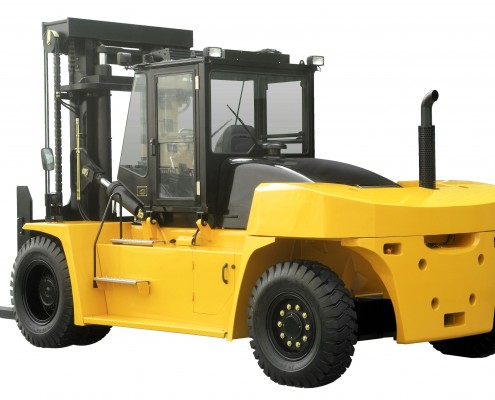

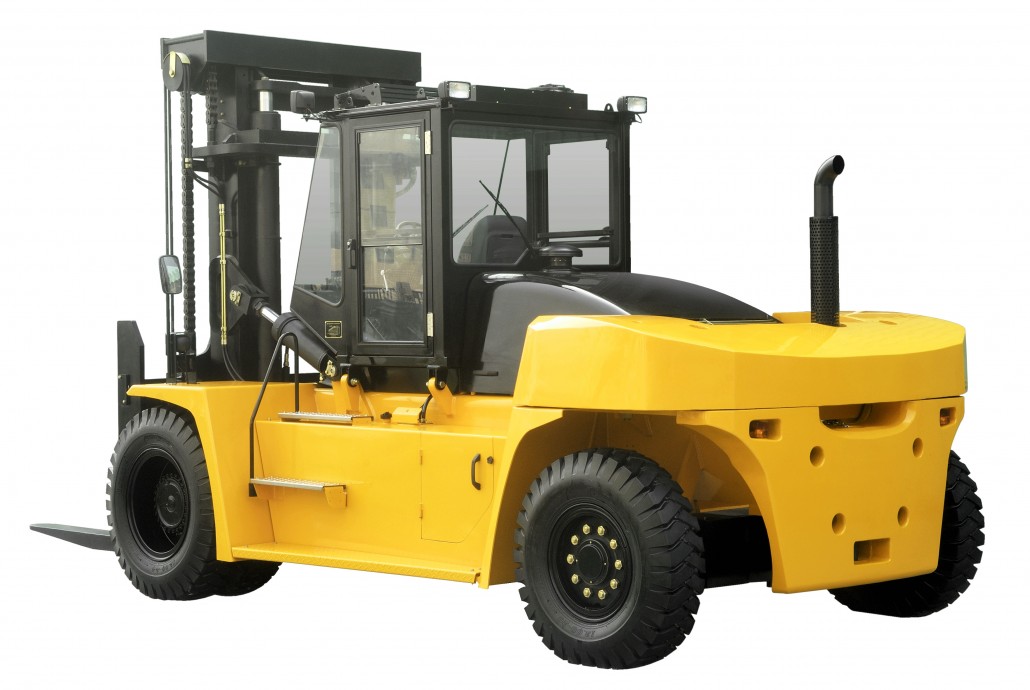

T1 Series Heavy Duty Diesel Forklift
FD140T / FD160T / FDD16T / FD180T
Overview
T1 series Heavy Duty Forklift are fitted with the very best power trains.
Engine, gearbox, driving axle – everything has been built and combined into a unit with the highest performance and durability possible. Together with the excellent dynamic stability of the forklift, this provides a driving experience and level of control throughout the work cycle that cannot be compared with any other simple designed trucks.
BASIC CHARATERISTICS:
| Model: | Rated Capacity: | Load Center: | Standard Mast Lifting Height: |
|---|---|---|---|
| FD140T | 14000 KGS | 900 mm | 3300 mm |
| FD160T | 16000 KGS | 900 mm | 3000 mm |
| FDD160T | 16000 KGS | 1200 mm | 3000 mm |
| FD180T | 18000 KGS | 900 mm | 3000 mm |
DIMENSIONS (FD140T & FD160T):
| FD140T: | FD160T: | |
|---|---|---|
| LENGTH TO FORK FACE: | 5420 mm | 5420 mm |
| OVERALL WIDTH: | 2706 mm | 2706 mm |
| MAST LOWERED HEIGHT: | 3500 mm | 3500 mm |
| MAST EXTENDED HEIGHT: | 5150 mm | 5000 mm |
| OVERHEAD GUARD HEIGHT: | 3240 mm | 3240 mm |
| TURNING RADIUS (outside): | 4925 mm | 4925 mm |
| FORK SIZE, (L×W×T): 920×100×35 mm | 1820×200×105 mm | 1820×200×105 mm |
DIMENSIONS (FDD160T & FD180T):
| FDD160T: | FD180T: | |
|---|---|---|
| LENGTH TO FORK FACE: | 5520 mm | 5520 mm |
| OVERALL WIDTH: | 2706 mm | 2706 mm |
| MAST LOWERED HEIGHT: | 3500 mm | 3500 mm |
| MAST EXTENDED HEIGHT: | 5000 mm | 5000 mm |
| OVERHEAD GUARD HEIGHT: | 3240 mm | 3240 mm |
| TURNING RADIUS (outside): | 5100 mm | 5100 mm |
| FORK SIZE, (L×W×T): 920×100×35 mm | 2440×250×105 mm | 1820×250×105 mm |
WEIGHT (FD140T & FD160T):
| FD140T: | FD160T: | |
|---|---|---|
| SERVICE WEIGHT: | 22900 KGS | 22900 KGS |
WEIGHT (FDD160T & FD180T):
| FDD160T: | FD180T: | |
|---|---|---|
| SERVICE WEIGHT: | 25370 KGS | 25000KGS |
POWER TYPE: DIESEL ENGINE:
| CUMMINS QSB6.7-C190 | |
|---|---|
| Rated Output: | 142.0 kw @ 2300 r.p.m |
| Rated Torque: | 930.0 N.m @ 1500 r.p.m |
| No.of Cylinder: | 6 |
| Bore × Stroke: | 107 ×124 mm |
| Displacement: | 6700 cc |
| Fuel Tank Capacity: | 280 L |
| Emission Standard: | EU IIIA, EPA Tier 3 |
| CUMMINS QSB6.7-200 | |
| Rated Output: | 149.0 kw @ 2200 r.p.m |
| Rated Torque: | 930.0 N.m @ 1500 r.p.m |
| No.of Cylinder: | 6 |
| Bore × Stroke: | 107 ×124 mm |
| Displacement: | 6700 cc |
| Fuel Tank Capacity: | 280 L |
| Emission Standard: | EU IIIB, EPA Tier 4 |
TRANSMISSION:
| BRAND: | German Brand – ZF. |
|---|---|
| TECHNOLOGY: | Micro Controller with 3 stage powershift |
| TPYE: | Electric Control Powershift |
| STAGE: | FWD /RVS = 3/3 |
BRAKE:
| SERVICE BRAKE: | Wet Disc Brake System |
| PARKING BRAKE: | Spring Applied, Hydraulic Release Multidisc Brake |
Power System
Cummins turbocharger 6 cylinders engine,high performance,low energy consumption,low speed with high torque,great power reserve.And the engine is equipped with big dimension radiator,improved cooling fan position and increase cooling capability.
Transmission System
ZF micro controller with 3 stage power-shift is to make sure the high reliability.German Kessler heavy load drive axle,with two stage speed adjust,multi-disc wet service brake system,is fully enclosed system with maintenance free.
Hydraulic System
The main hydraulic components like the control valves,variable pump are products of Rexroth.
Steering System
Transverse steering axle with full hydraulic steering and sensor system is to make sure easy steering.
Cabin
Tilting cabin is easy for daily service.The wide view mast and high positioned seat provide excellent visibility of operator.
