Sideloader Forklift Series
3.0t
Overview

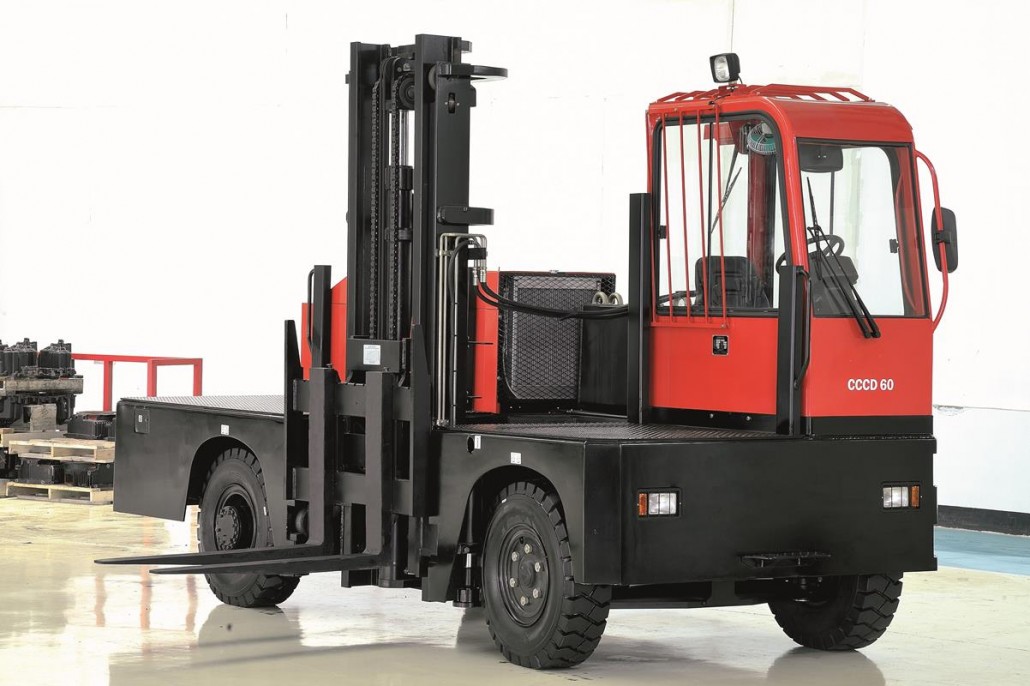

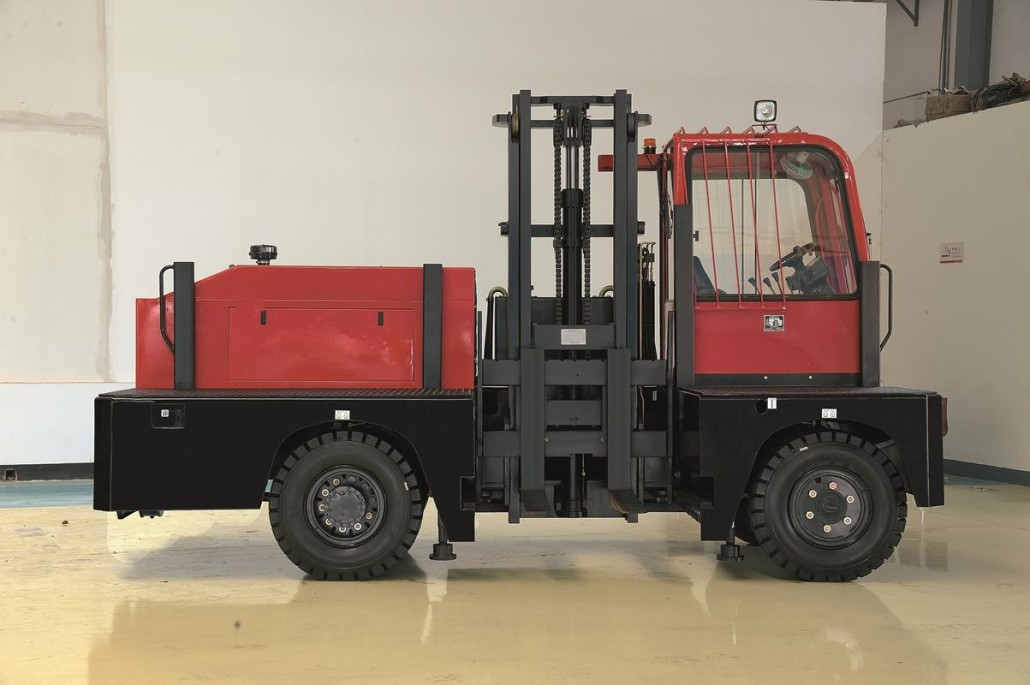

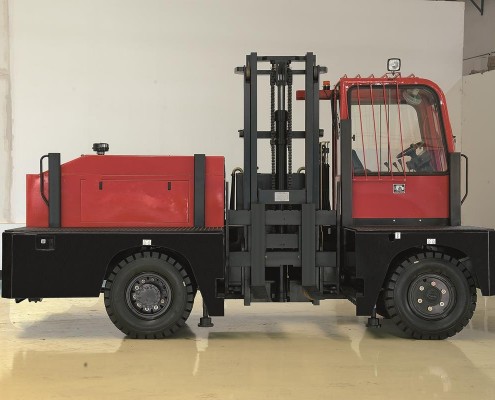

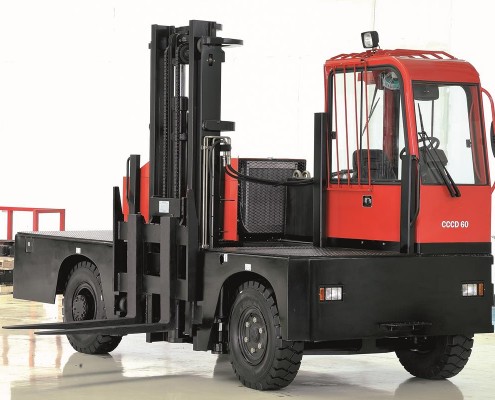

TOTAL new side-loader forklift with the load capacity ranging from 3.0t to 6.0t is specially developed to meet the load and unload requirements of long dimension loads such as pipes,logs.
BASIC CHARATERISTICS:
| Model: | Rated Capacity: | Load Center: | Standard Mast Lifting Height: |
|---|---|---|---|
| CCCD 30 | 3000 KGS | 500 mm | 3600 mm |
DIMENSIONS:
| CCCD 30 | |
|---|---|
| LENGTH TO FORK FACE: | 4260 mm |
| OVERALL WIDTH: | 2040 mm |
| MAST LOWERED HEIGHT: | 2700 mm |
| MAST EXTENDED HEIGHT: | 4600 mm |
| CABIN OVERHEAD HEIGHT: | 2643 mm |
| PLATFORM HEIGHT: | 980 mm |
| PLATFORM WIDTH | 1182 mm |
| TURNING RADIUS (outside): | 4255 mm |
| Min. Right Angle Stacking Aisle Width: (Add Load Length and Clearance) | 3750 mm |
| Ground Clearance,laden,below mast | 150 mm |
| FORK SIZE, (L×W×T): | 1070×125×45 mm |
WEIGHT:
| CCCD 30 | |
|---|---|
| SERVICE WEIGHT: | 5600 KGS |
POWER TYPE: DIESEL ENGINE:
| XINCHAI A495BPG | |
|---|---|
| Rated Output: | 42.0 kw @ 2650 r.p.m |
| Rated Torque: | 174 N.m @ 1800 r.p.m |
| No.of Cylinder: | 4 |
| Displacement: | 2977 cc |
| CUMMINS B3.3NAT3 | |
| Rated Output: | 48.0 kw @ 2600 r.p.m |
| Rated Torque: | 214 N.m @ 1600 r.p.m |
| No.of Cylinder: | 4 |
| Displacement: | 3259 cc |
TRANSMISSION:
| BRAND: | Chinese Brand |
|---|---|
| TECHNOLOGY: | Powershift |
| TPYE: | Automatic |
| STAGE: | FWD /RVS = 1/1 |
| BRAND: | Japanese Brand – OKAMURA |
| TECHNOLOGY: | FLOATING TYPE,Powershift |
| TPYE: | Automatic |
| STAGE: | FWD /RVS = 1/1 |
The new side-loader forklift with the load capacity ranging from 3.0t to 6.0t is specially developed to meet the load and unload requirements of long dimension loads such as pipes,logs.
It has patents with regard to cabin,dash-panel,parking brake and brake system.This ensures high working reliability.Apart from the superior performance and productivity in all applications.TOTAL sideloader also features convenient maintenance and servicing.
This sideloader forklift is available with the environment friendly CUMMIINS engine,PERKINS engine or Chinese engines.As the truck engines meet related emission standards,so that customers can feel comfortable when use it,its noise level also reach EU standards.In addition,the spacious cabin provides comfortable driving experience for operator because of low vibration,low noise and good ventilation.What’s more.the sliding door together with the tilt chassis forks all contribute to easy operation.
