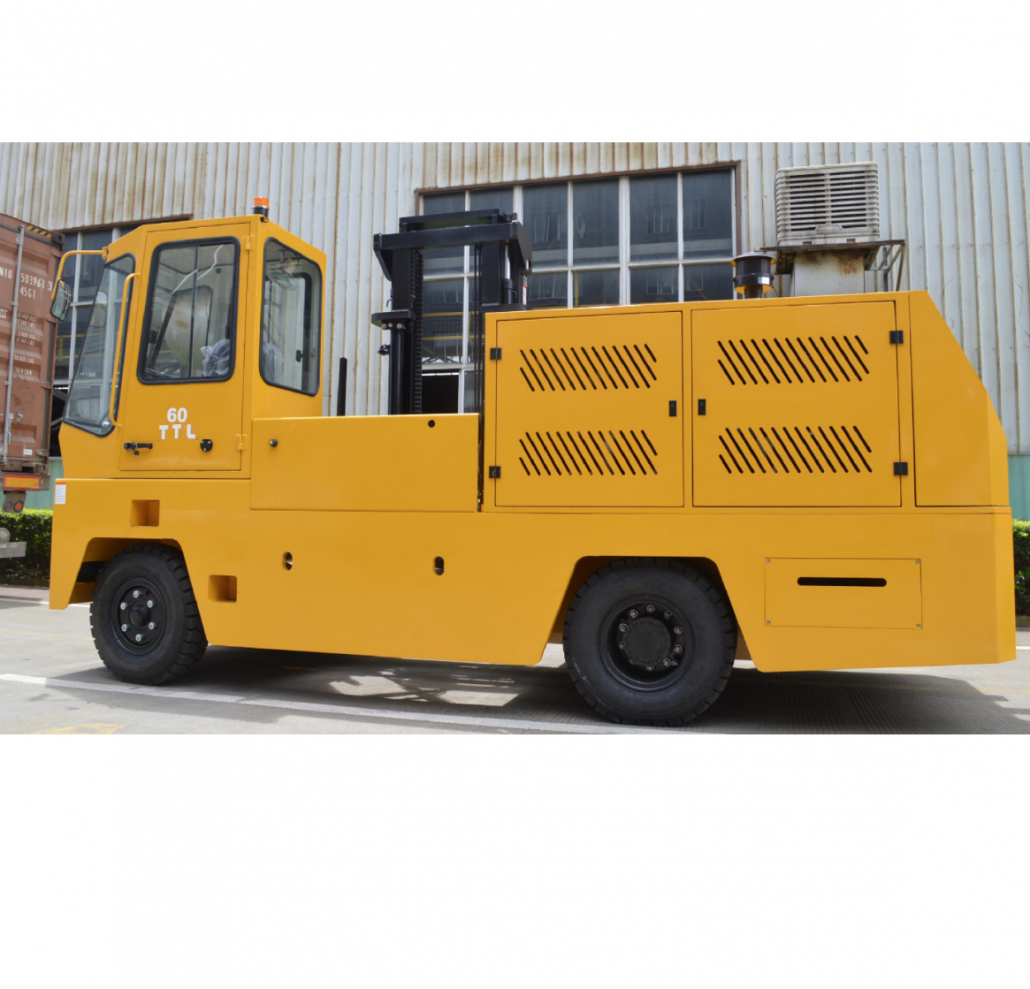

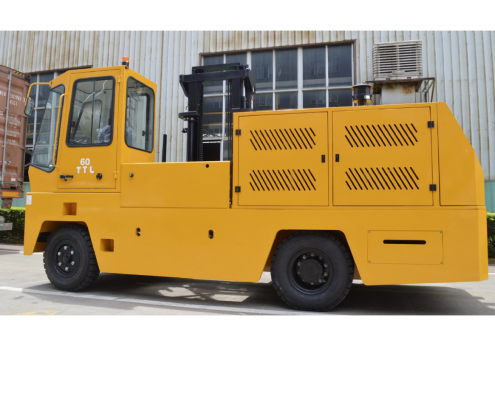

Sideloader Forklift Series: 5.0t /6.0t
CCCD 50 / CCCD 60
Overview
TOTAL new side-loader forklift with the load capacity ranging from 3.0t to 6.0t is specially developed to meet the load and unload requirements of long dimension loads such as pipes,logs.
BASIC CHARATERISTICS:
| Model: | Rated Capacity: | Load Center: | Standard Mast Lifting Height: |
|---|---|---|---|
| CCCD 50 | 5000 KGS | 5000 KGS | 3600 mm |
| CCCD 60 | 6000 KGS | 5000 KGS | 3600 mm |
DIMENSIONS:
| CCCD 50 | CCCD 60 | |
|---|---|---|
| LENGTH TO FORK FACE: | 4890 mm | 4890 mm |
| OVERALL WIDTH: | 2100 mm | 2100 mm |
| MAST LOWERED HEIGHT: | 2890 mm | 2865 mm |
| MAST EXTENDED HEIGHT: | 4600 mm | 4575 mm |
| CABIN OVERHEAD HEIGHT: | 2790 mm | 2765 mm |
| PLATFORM HEIGHT: | 1075 mm | 1050 mm |
| PLATFORM WIDTH | 1200 mm | 1200 mm |
| TURNING RADIUS (outside): | 4700 mm | 4700 mm |
| Min. Right Angle Stacking Aisle Width: (Add Load Length and Clearance) | 3800 mm | 3800 mm |
| Ground Clearance,laden,below mast | 190 mm | 165 mm |
| FORK SIZE, (L×W×T): | 1200×150×60 mm | 1200×150×60 mm |
WEIGHT:
| CCCD 50 | CCCD 60 | |
|---|---|---|
| SERVICE WEIGHT: | 8500 KGS | 8800 KGS |
POWER TYPE: DIESEL ENGINE:
| LUOTUO LR4B3-24 | |
|---|---|
| Rated Output: | 64.0 kw @ 2400 r.p.m |
| Rated Torque: | 300 N.m @ 1400-1600 r.p.m |
| No.of Cylinder: | 4 |
| Displacement: | 4580 cc |
| PERKINS 1104D-44T | |
| Rated Output: | 62.0 kw @ 2200 r.p.m |
| Rated Torque: | 354.0 N.m @ 1400 r.p.m |
| No.of Cylinder: | 4 |
| Displacement: | 4400 cc |
TRANSMISSION:
| BRAND: | Chinese Brand |
|---|---|
| TECHNOLOGY: | Powershift |
| TPYE: | Automatic |
| STAGE: | FWD /RVS = 1/1 |
The new side-loader forklift with the load capacity ranging from 3.0t to 6.0t is specially developed to meet the load and unload requirements of long dimension loads such as pipes,logs.
It has patents with regard to cabin,dash-panel,parking brake and brake system.This ensures high working reliability.Apart from the superior performance and productivity in all applications.TOTAL sideloader also features convenient maintenance and servicing.
This sideloader forklift is available with the environment friendly CUMMIINS engine,PERKINS engine or Chinese engines.As the truck engines meet related emission standards,so that customers can feel comfortable when use it,its noise level also reach EU standards.In addition,the spacious cabin provides comfortable driving experience for operator because of low vibration,low noise and good ventilation.What’s more.the sliding door together with the tilt chassis forks all contribute to easy operation.
