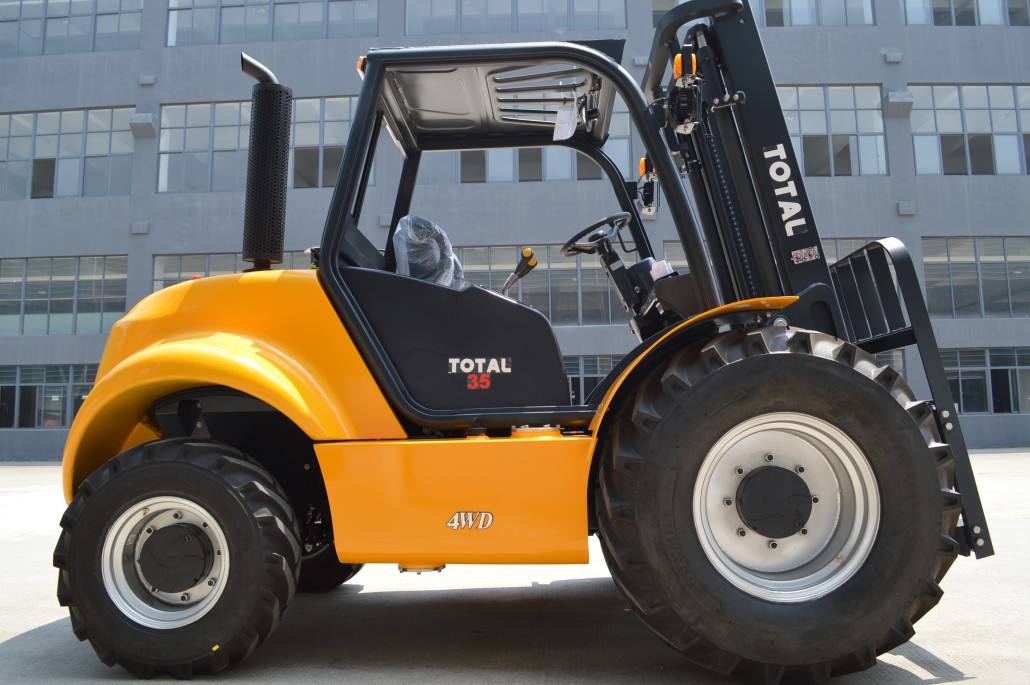

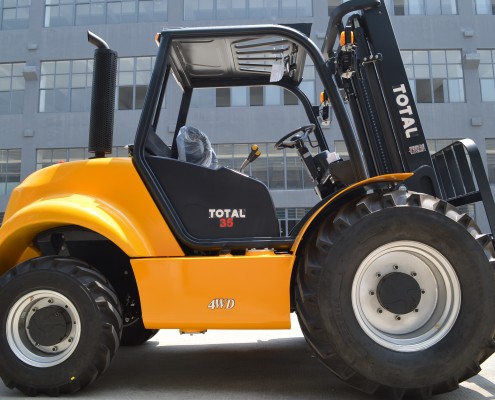

Rough Terrain Series
2.5t / 3.5t
Overview
Built for rough terrain,with an emphasis on performance,reliability,and high-tech design.Our terrain rough forklift is a wonderful choice for your all terrain rough working condition.
Compact size with streamline outline and wide view mast design allows better forward and backward visibility for the operator.
Specially designed for construction,mining,forestry,,lumber&building industry,the forklifts have high ground clearance,better mobility and stability on rough terrain with or without load.
Rugged design integral frame is robotic welded for maximum rigidity,superior quality and long term endurance to meet the most demanding operating conditions.
BASIC CHARATERISTICS:
| Model: | Rated Capacity: | Load Center: | Standard Mast Lifting Height: |
|---|---|---|---|
| FD25T-TRM | 2500 KGS | 500 mm | 3000 mm |
| FD35T-TRM | 3500 KGS | 500 mm | 3000 mm |
DIMENSIONS:
| FD25T-TRM: | FD35T-TRM: | |
|---|---|---|
| LENGTH TO FORK FACE: | 2946 mm | 2956 mm |
| OVERALL WIDTH: | 1557.5 mm | 1600.5 mm |
| MAST LOWERED HEIGHT: | 2265 mm | 2330 mm |
| MAST EXTENDED HEIGHT: | 2330 mm | 4305 mm |
| OVERHEAD GUARD HEIGHT: | 2256.5 mm | 2276 mm |
| TURNING RADIUS (outside): | 2783 mm | 2783 mm |
| Min. Right Angle Stacking Aisle Width: (Add Load Length and Clearance) | 4795 mm | 4805 mm |
| FORK SIZE, (L×W×T): 920×100×35 mm | 1100×122×40 mm | 1220×122×40 mm |
WEIGHT:
| FD25T-TRM: | FD35T-TRM: | |
|---|---|---|
| SERVICE WEIGHT: | 4465 KGS | 5180 KGS |
| WEIGHT DISTRIBUTION: | ||
| Full Load : Front / Rear | 5990 / 975 KGS | 7725 / 955 KGS |
| No Load : Front / Rear | 1785 / 2680 KGS | 2070 / 3110 KGS |
POWER TYPE: DIESEL ENGINE:
| YANMAR 4TNE98-BQFLC | |
|---|---|
| Rated Output: | 42.1 kw @ 2300 r.p.m |
| Rated Torque: | 206 N.m @ 1700 r.p.m |
| No.of Cylinder: | 4 |
| Bore × Stroke: | 98 ×110 mm |
| Displacement: | 3318 cc |
| Fuel Tank Capacity: | 55 L |
TRANSMISSION:
| BRAND: | Chinese Brand – ZHONGNAN. |
|---|---|
| TECHNOLOGY: | TCM Technology,All Terrain Rough Type |
| TPYE: | Powershift |
| STAGE: | FWD /RVS = 1/1 |
Safety
Overhead Safeguard
Robust Overhead Safeguard and its supporting frame form safe area to avoid the accident and protect the operator.

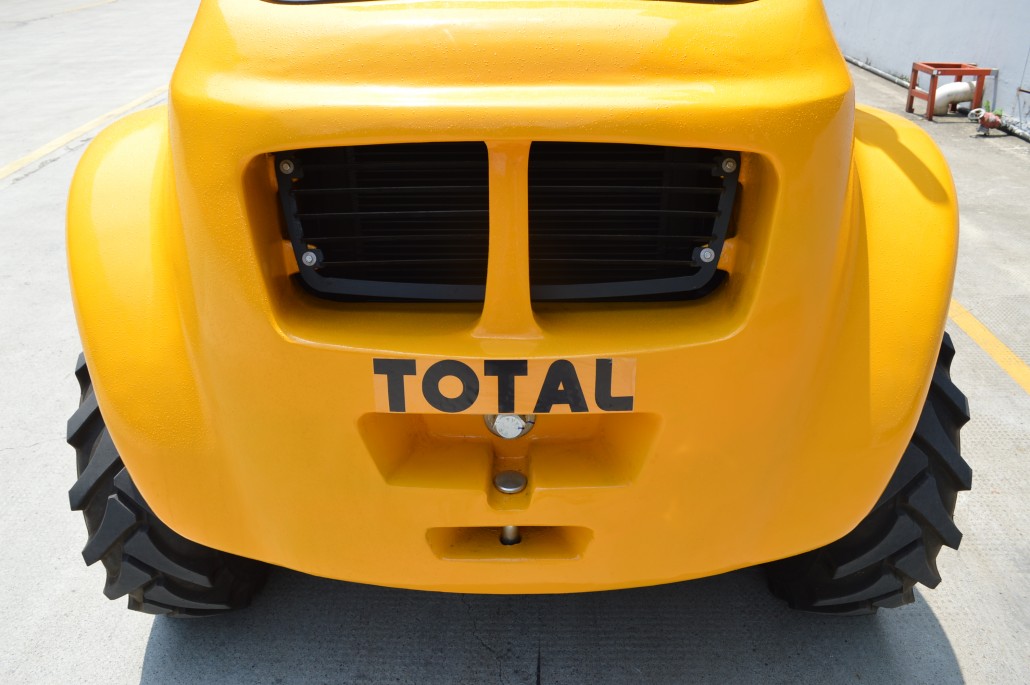

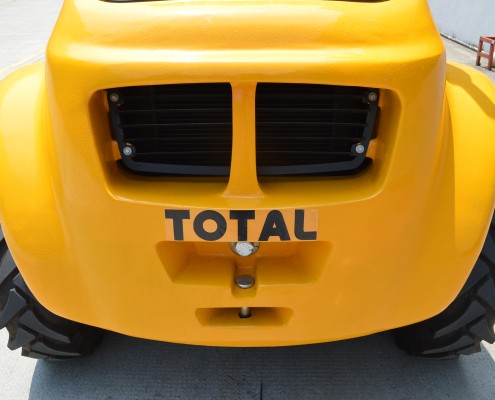

Streamline Counterweight
The streamline counterweight provide a better visibility of the backward side
Wide View Mast
The wide view mast design guarantee the operator have good visibility,avoid the accident.
Seat With Safe Belt
The forklifts are equipped with high quality seat with safe belt,keep the operator on a safe position
Simple to Operate
TOTAL terrain rough forklift series is simple to operate.Friendly interface let the operator have a easy access to operate the truck. The automobile style compartment layout provide a comfortable working environment hand in hand with the simplicity of operation.
Performance and Productivity
Terrain Rough adapted tires,axles,transmission,chassis,mast and integrated safeguard form an basic structure to work perfectly in tough terrain rough application such as construction,forestry,mining,etc.

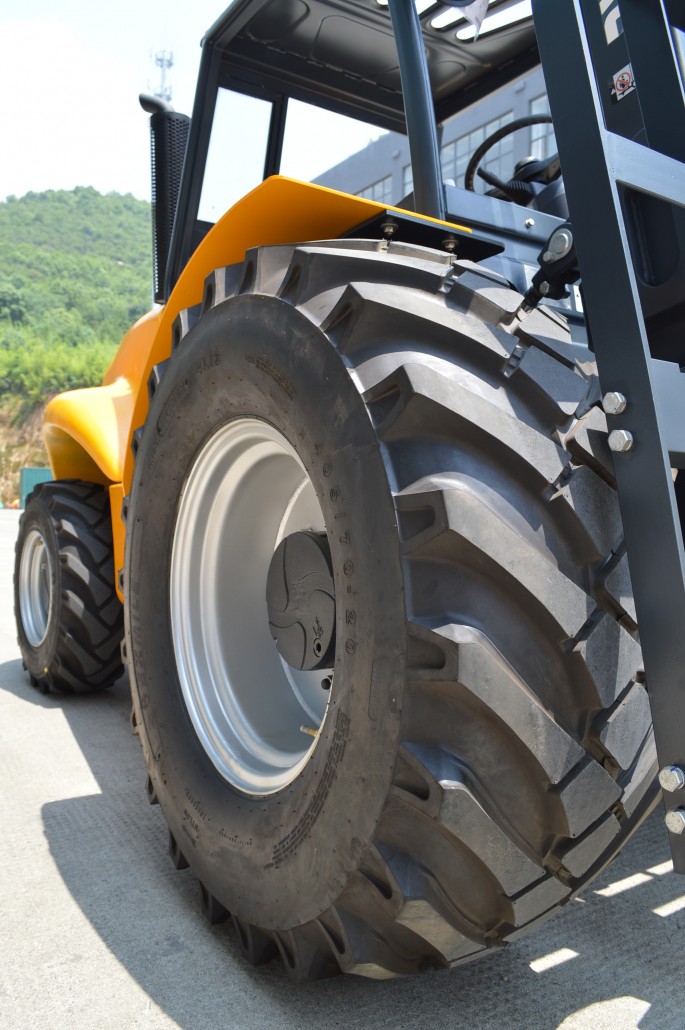

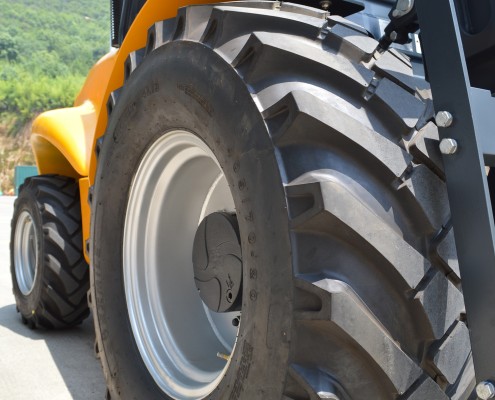

Tires:Special heavy truck tires with a wide footprint provide the forklift with better stability and lift capacity in rough terrain working condition.
Axle: Oscillating steering axle allow either of the wheels to step over obstacles steadily.Flotation driving and steering tires bring excellent traction and stability.The steering angle can reach from 43.6 degree to 70 degree with very small turning radius.
Transmission:Powershift transmission with torque converter features two pedal inching and brake control and full reversal allowing faster cycle times.The 100% differential lock is specially designed for rough terrain and features automatic differential lock providing ultimate traction during inclement weather conditions and rough operating surfaces.
Chassis&Overhead Safeguard: Integral chassis and overhead safeguard make the whole structure stable and robust,With the rubber damping stay between the connection to absorb the vibration,the whole truck is more comfortable when drive on uneven road.
High Ground Clearance: Up to 270mm ground clearance offers greater maneuverability and keeps the machine moving in the toughest application.
Mast:Panoramic view mast provide excellent visibility,improving efficiency and reduce the accident possibility.Bigger mast tilting angle ,(Forward=10 degree,Backward=12 degree) meet the tough terrain application requirement.
Maintenance & Servicing
Because the clear layout without complicated electronic systems,it make the forklift easy to repair and maintain,the technician can fix the problem without special tools or computer with special software.These features make the maintenance cost and repair cost low.
