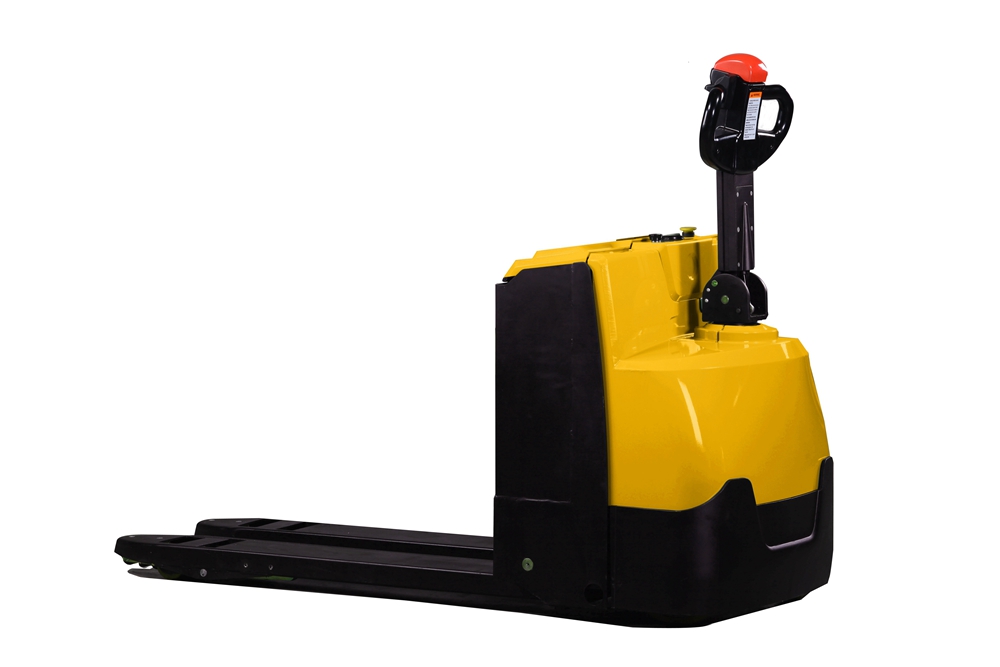

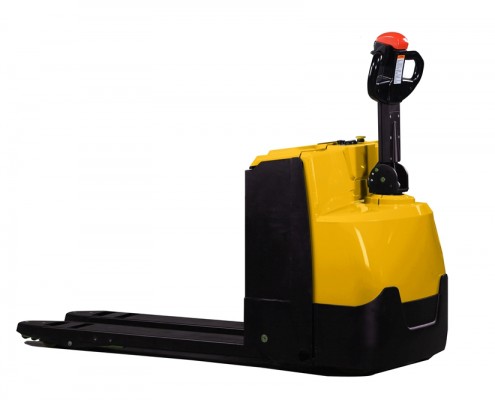

Electric Pallet Truck
Total Forklift: EPT15 / EPT20 / EPT25 / EPT30
Overview
TOTAL electric pallet truck is your perfect assistant in short distance horizontal palletlized cargo transportation.With the power of electric and motor,no need to move the heavy goods just by your own body strength,just focus on the technology the electric pallet brings.
Ergonomic and engineering advantages make TOTAL electric pallet truck easy to operate: All control buttons concentrate on the multi-functional tiller head.The central placement of the tiller arm,in accordance with ergonomic engineering,ensuring less steering efforts.
Model: | EPT15 | EPT20 | EPT25 | EPT30 |
Operation: | Stand-on / Walkie | Stand-on / Walkie | Stand-on / Walkie | Stand-on / Walkie |
Power Type: | Battery ( Italy FAMM or Chinese ) | Battery ( Italy FAMM or Chinese ) | Battery ( Italy FAMM or Chinese ) | Battery ( Italy FAMM or Chinese ) |
Battery: | 24V/70Ah | 24V/240Ah | 24V/240Ah | 24V/240Ah |
Electric Controller: | CURTIS | CURTIS | CURTIS | CURTIS |
Rated Load Capacity(kg): | 1500 | 2000 | 2500 | 3000 |
Load Center (mm): | 600 | 600 | 600 | 600 |
SAFETY
Low skirt chassis; accidents can be prevented when the operators wear the working shoes.
Proportional speed: the truck’s speed varies depending to the tiller angle with the butterflies (can be adjusted), guarantee safety.
Mast Intelligent Buffering System
Overload Prevent Valve

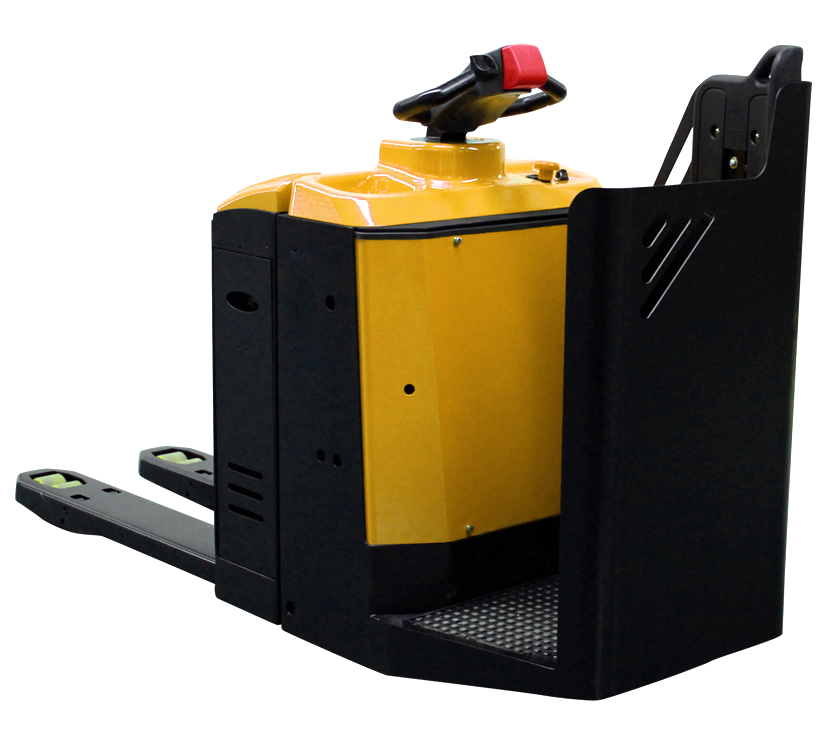

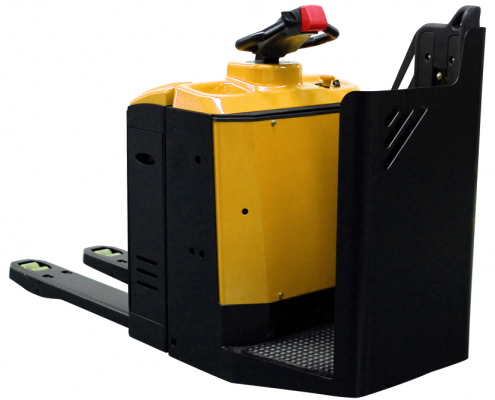

Arm protection and standing platform can be fixed as optional equipment for safety steering
The platform is equipped with anti-slip floor mat
Creep speed:while using the butterflies control, 1.5km/h creep speed would be set.
Safety is assured by two position electromagnetic mechanical brake: when the tiller arm is at vertical and horizontal position ; Auto brake after releasing the butterflies button ;
Anti-collision Button to protect the operator from harm ;
Emergency butter is equipped within easy reach position.
RELIABILITY
Robust modular construction guarantee the product reliability.
Sturdy chassis and robust fork tip which can bear 1.0~3.0Ton load without transformation
Sturdy castor wheel (balance wheel)
5-point wheel configuration
High stability, perfect traction behavior.
Tandem Loading Wheels
Applicable to uneven floor
Easy to go through groove and enter elevator, dedicated for closed pallet
Sturdy covers, non-deformable and rusty proof with long life time.
Easy to open thanks to the light weight and ergonomic design
HIGH PERFORMANCE
All controls on tiller head
Precise Proportional Lifting Control
Forward, backward, lifting and lowering controls are all on tiller head
High motor torque for great performances
No roll back when starting on ramp
Electric Power Steering
A powerful and smooth acceleration
World Class Electric Controller
Parameter adjustable, for example, acceleration speed.
Auto-checking:truck can only operate when all components are running.
High Electrical Efficiency
COMFORT
The central placement of the tiller arm,in accordance with ergonomic engineering,ensuring less steering efforts
Electric power steering, high responsive, no kickback, only 1/10 steering effort of the manual steering.
Platform with anti-vibration carpet, providing operating comfort.
Practical storage compartments for working requirements.
Battery discharge indicator:below 20%lift is not working.
Fork tips can be clearly seen, convenient for pallet entry.
Generous tiller head space, even wearing gloves in cold store, the operation is as the same.
MAINTENANCE & SERVICING
All internal components are reasonably arranged as well as the cables. Lifting system, driving system and control system can be reached after opening the cover.
All electric components are sealed for dust and water vapor proof.
TOTAL Electric Stackers are equipped with world-class batteries as standard, which features with long service life and can be recharged for 1,500 times. Worked with intelligent charger, charging and all daily maintenance are accomplished automatically with less involving engineer’s labor.
