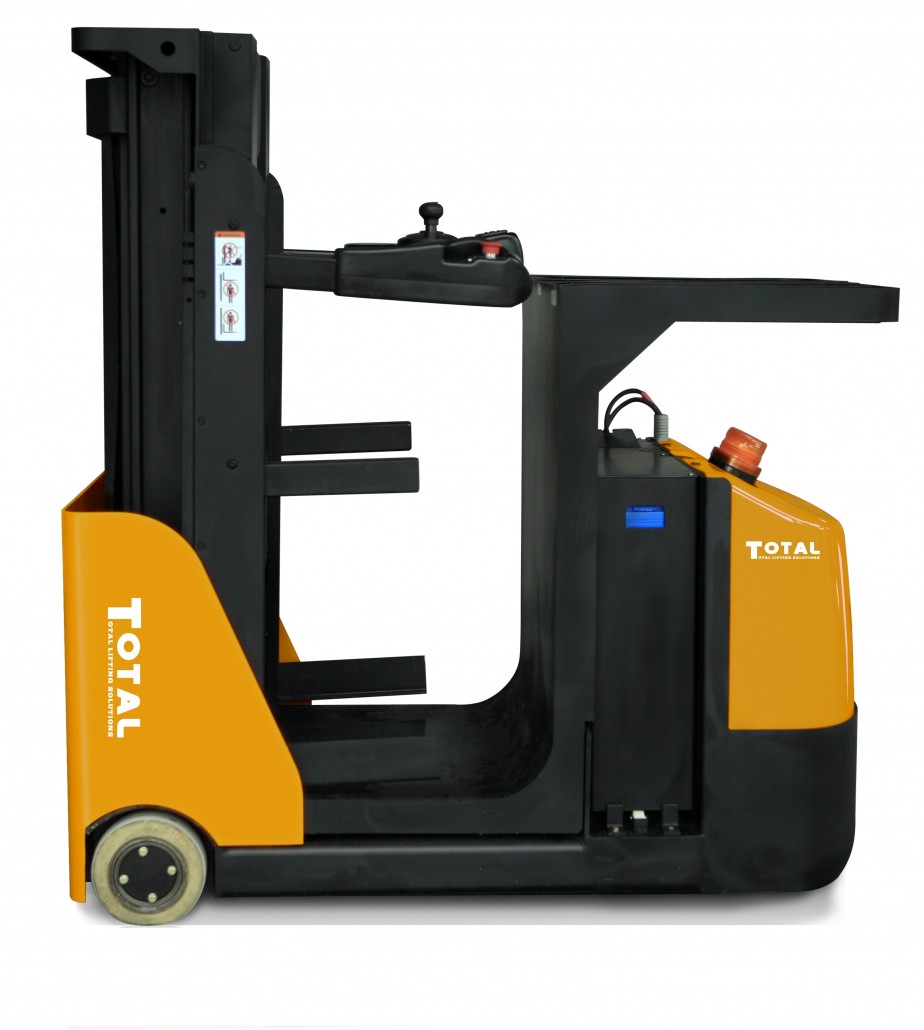

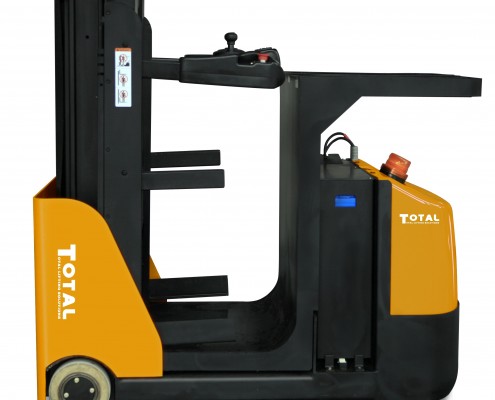

Order Picker
Total Forklift: FBOP15
Overview
Innovative design,advanced technology,robust construction,all these features come together to bring you a perfect machine in various applications,such as in warehouse, retail store,super market,e-commerce company,auto-parts manufacturing,electronic manufacturing,etc.
With superior driving performance, fatigue-reducing comfort, and a significant number of features which reduce and simplify the operator’s movement when performing tasks both on and off the order picker.
POWER TYPE: ELECTRIC WITH 100% AC TECHNOLOGY ELECTRIC CONTROLLER:
| MANUFACTURER: | Italian Brand – ZAPI |
|---|---|
| TYPE OF DRIVE CONTROL: | MOSFET/AC |
BATTERY:
| VOLTAGE/CAPACITY: | 24V/224Ah |
|---|
| Model: | Rated Capacity: (On front platform) | Rated Capacity: (On behind platform) | Rated Capacity: (On standing platform) |
|---|---|---|---|
| FBOP22 | 227 KGS | 137 KGS | 136 KGS |
| FBOP32 | 227 KGS | 137 KGS | 136 KGS |
| FBOP36 | 227 KGS | 137 KGS | 136 KGS |
| FBOP41 | 227 KGS | 137 KGS | 136 KGS |
DIMENSIONS:
| FBOP22: | FBOP32: | FBOP36 | FBOP41： | |
|---|---|---|---|---|
| LENGTH TO FORK FACE: | 1500 mm | 1500 mm | 1500 mm | 1500 mm |
| OVERALL WIDTH: | 800 mm | 800 mm | 800 mm | 800 mm |
| MAST LOWERED HEIGHT: | 1590 mm | 1590 mm | 1670 mm | 2120 mm |
| STAND HEIGHT,MAST EXTEND: | 2200 mm | 3200 | 3600 mm | 4100 mm |
| SEAT /STANDING HEIGHT: | 250 mm | 250 mm | 250 mm | 250 mm |
| INITIAL HEIGHT OF FRONT CARGO PLATFORM: | 1082 mm | 1082 mm | 1082 mm | 1082 mm |
| CONTROL HANDLE HEIGHT: | 1010 mm | 1010 mm | 1010 mm | |
| OVERALL LENGTH (PLATFORM LAUNCH): | 1795 mm | 1795 mm | 1795 mm | 1795 mm |
| WORKING AISLE WIDTH: | 1750 mm | 1750 mm | 1750 mm | 1750 mm |
| TURNING RADIUS | 1385 mm | 1385 mm | 1385 mm | 1385 mm |
WEIGHT:
| FBOP22: | FBOP32: | FBOP36： | FBOP41： | |
|---|---|---|---|---|
| SERVICE WEIGHT: | 1090 KGS | 1160 KGS | 1230 KGS | 1340 KGS |
BRAKE:
| SERVICE BRAKE: | ELECTROMAGNETIC |
STEERING SYSTEM:
ELECTRIC POWER STEERING
NOISE LEVEL:
| FBOP22: | FBOP32: | FBOP36： | FBOP41: |
| 74dB | 74dB | 74dB | 74dB |
SPEED
1.24-volt ZAPU ACO travel and EPS ACO power steering controller with dash board display.
2.Travel
Variable from 0mph to 3.4mph
3.Lift
Up to 42mph
ELECTRICAL
AC controller manage travel, braking, lift/lower functions and steering. LCD dash-board displays, hour meter, battery state of charge, travel speed and drive wheel directional indicator.
AC drive motor provides high torque throughout the entire drive range. The brushless design of AC technology drastically reduces maintenance and extends battery range.
Travel speed remains constant relative to throttle position regardless of the load on truck.
Programmable – travel speeds, plugging, and neutral braking are infinitely variable providing application specific performance.
MAST
Heavy duty I-beam design provides excellent stability at height. Steel mast channels and side mounted lift cylinders increases platform capacity.
CHASSIS
Three point chassis design with along with 180° drive motor steering arc provides exceptional maneuverability. Powerhead mounted stability casters add additional truck stability and operator confidence at working heights up to twenty feet.
OPERATOR COMPARTMENT
Ergonomic fingertip control for travel, lift, and lower functions provide the operator with logical intuitive drive characteristics while traveling at elevation or lowered.
Roomy operator compartment is designed for productivity. Large storage compartment allows storage of clip boards, pens , Retractable compartment side-rails with audible alarm when raised.
REGENERATIVE BRAKES
Regenerative braking is applied when the operator removes their hand from travel control or when travel speeds are reduced, Electromagnetic parking brake is applied after the truck is stopped.
