TU Series

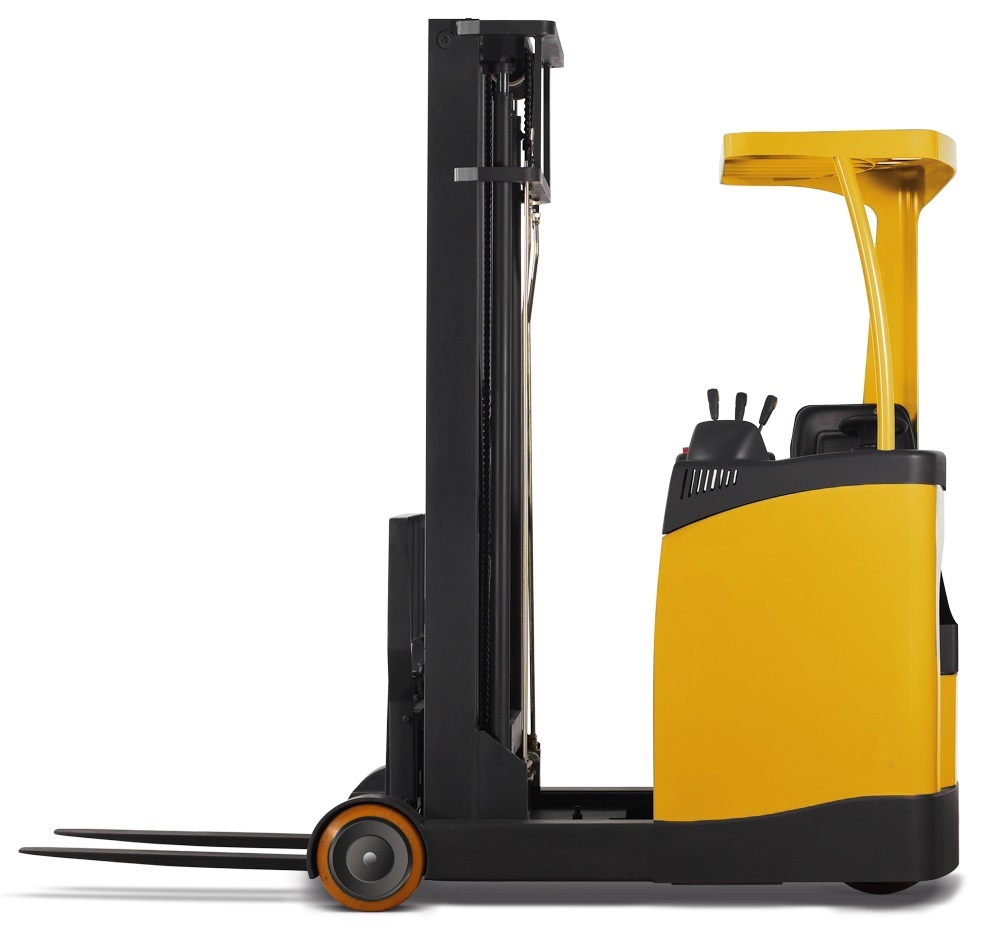

Total Forklift Reach Truck: 1.6t /1.8t / 2.0t
Overview
Ergonomic design and high performance supported by innovative technology help TOTAL reach trucks become the perfect solution for various application. Whether use in operating in pallet, drive-through or drive-in racking. Whether for narrow areas or low clearances.TOTAL reach truck will always be your good assistant in stacking.
DIMENSIONS:
| FBRS16-TU: | FBRS18-TU: | FBRS20-TU: | FBRS20H-TU: | |
|---|---|---|---|---|
| LENGTH TO FORK FACE: | 2565 mm | 2635 mm | 2635 mm | 2735 mm |
| OVERALL WIDTH: | 1270 mm | 1270 mm | 1270 mm | 1270 mm |
| MAST LOWERED HEIGHT: | 2198 mm | 2198 mm | 2198 mm | 3880 mm |
| STAND HEIGHT,MAST EXTEND: | 6040 mm | 6040 mm | 6040 mm | 10030 mm |
| OVERHEAD GUARD HEIGHT: | 2220 mm | 2220 mm | 2220 mm | 2220 mm |
| TURNING RADIUS | 1820 mm | 1820 mm | 1820 mm | 1920 mm |
| AISLE WIDTH: (For pallets 1000×1200 crossways): | 2930 mm | 2980 mm | 2980 mm | 3000 mm |
| AISLE WIDTH: (For pallets 800×1200 crossways): | 2990 mm | 3100 mm | 3100 mm | 4400 mm |
| REACH DISTANCE: | 560 mm | 488 mm | 488 mm | 560 mm |
| FORK SIZE, (L×W×T): | 920×120×35 mm | 1070×120×40 mm | 1070×120×40 mm | 1070×120×40 mm |
WEIGHT:
| FBRS16-TU: | FBRS18-TU: | FBRS20-TU: | FBRS20H-TU: | |
|---|---|---|---|---|
| SERVICE WEIGHT: | 2900 KGS | 3100 KGS | 3100 KGS | 4400 KGS |
BRAKE:
| SERVICE BRAKE: | ELECTROMAGNETIC |
STEERING SYSTEM:
ELECTRIC POWER STEERING
POWER TYPE: ELECTRIC WITH 100% AC TECHNOLOGY ELECTRIC CONTROLLER:
| MANUFACTURER: | Italian Brand – ZAPI |
| TYPE OF DRIVE CONTROL: | MOSFET/AC |
BATTERY:
| VOLTAGE/CAPACITY: | |
| FBRS16-TU: | 48V/820Ah |
| FBRS18-TU: | 48V/560Ah |
| FBRS20-TU: | 48V/560Ah |
| FBRS20H-TU: | 48V/700Ah |
| Model: | Rated Capacity: | Load Center: | Standard Mast Lifting Height: |
| FBRS16-TU: | 1600 KGS | 500 mm | 5000 mm |
| FBRS18-TU: | 1800 KGS | 500 mm | 5000 mm |
| FBRS20-TU: | 2000 KGS | 500 mm | 5000 mm |
| FBRS20H-TU: | 2000 KGS | 500 mm | 9000 mm |
SAFETY
Robust integral safeguard form a safe working space for the operator.
Dual brake system including electromagnetic brake system and electric brake system guarantee safety when brake.
Swerve Angle and Speed Proportion Control Device speed down automatically when swerve.
Steering Wheel Automatic Return Function Swerve wheel return to the middle when restart.
Mast Buffering Function When mast is lowered to about 10cm above the ground, the lowering will speed down automatically to make sure the forks steady.
Emergency switch is standard specification which meets the Euro safety regulation.
Operator Presence System is an standard configuration to enhance the safety
PERFORMANCE
100% AC technology with world famous ZAPI controller to deliver efficiency and high performance.With brand HAWKER battery support in energy,it can provide bigger capacity and longer battery working life.
Once brake during driving,reach truck motor will power off automatically.This can reduce energy lost and save electricity,extend battery working hours.
Robust wide view mast provide a excellent visibility when the operator is working.
COMFORT
Superb low noise motors make the whole machine quiet when it’s operating.
Ergonomically designed hydraulic levers and compact steering wheels powered by EPS system reduce fatigue and improve comfort.
Big dashboard is easy to see and provides friendly human-computer interaction and with battery power status,error code,drive or brake status,drive speed,direction indicator and middle gear confirmation,Error code alarm,Working hours,Electric lock switch and double light.
Large well spaced pedals,Spacious, uncluttered leg room,Convenient storage space for drinks
and oddments provide the operator a comfortable working environment.
Quiet,energy saving and no exhaust emission,all meet friendly requirement.
MAINTENANCE AND SERVICING
Full opened battery cover is easy for battery service
The controller is enclosed to avoid dust and water,and the cover is easy opened.The applied world famous controllers,connectors,battery plug,emergency switch and dashboard guarantee the reliability of the performance and provide easy service.
There’s overloading protection for electronics and hydraulic system.
Maintenance free motor, reduce your cost
Front way battery change system make it possible to change battery in one minute.
CAN bus diagnostics enable rapid fault finding and repair helping to achieve exceptional levels of truck uptime.
